Commercial Cable Guided Outdoor Blinds

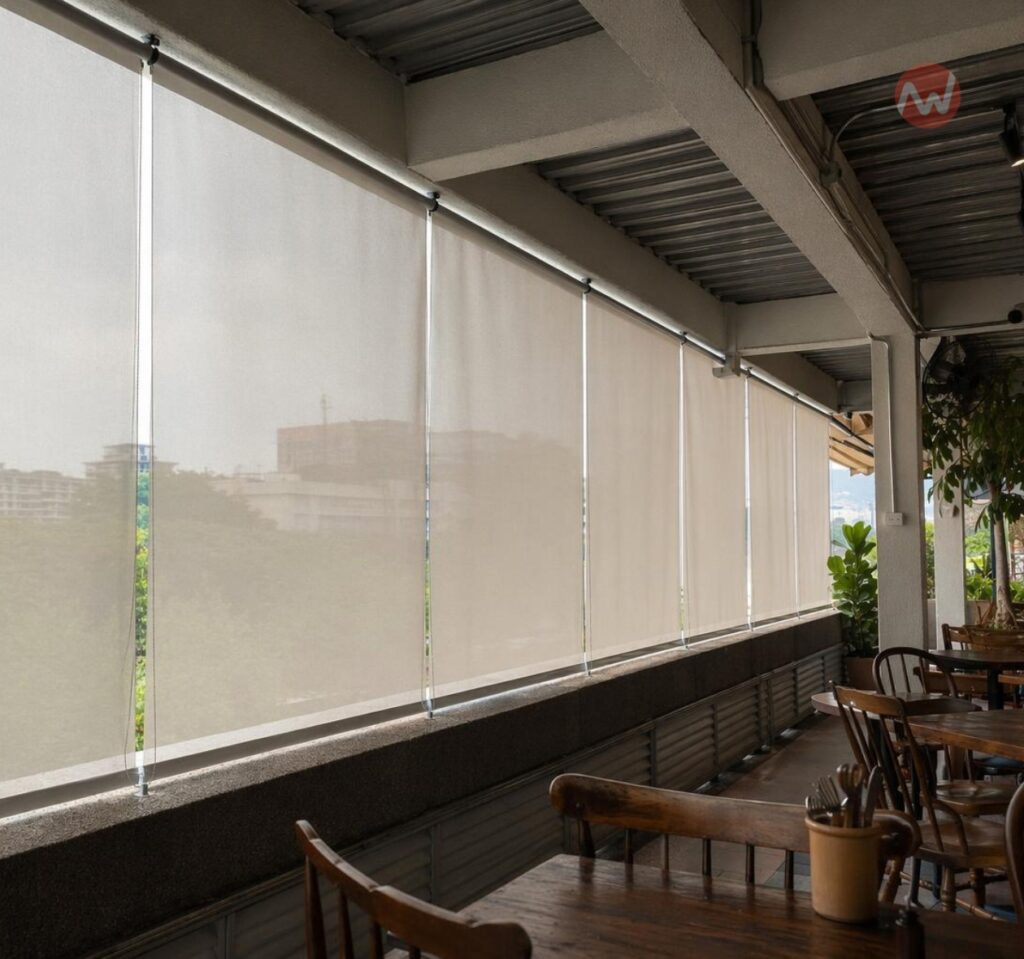

Roughly 80 percent rain block in normal monsoon. The cables hold the fabric flat through a Klang Valley downpour, so tables stay dry and covers stay seated. Heavy storms differ: mist passes through the weave and some water finds the unsealed side edges, mitigated by deeper cassettes or side panels where zero water ingress matters.

316 marine-grade stainless cables hold the line through 25 to 40 km/h sustained wind, with gusts to 60 km/h tolerated when the heavy-duty bottom bar is specified. No rattle. No mid-service interruption. Specify the heavy-duty bottom bar and 65 or 80 mm tube for spans above 3.5 m or rooftop positions.

Sunscreen mesh at 1, 3, or 5 percent openness drops the temperature behind the shade by 10 to 15 °C versus direct sun. The 11am-to-3pm block stops being the empty hour. Pick the openness for the privacy-and-view balance you want.

316 marine-grade stainless cables and powder-coated aluminium frames are sized for a 10+ year operating life in humid, salt-air conditions. No-name imports rust within a season; this is the durability gap. Specify the heavy-duty bottom bar for spans above 3.5 m or wind-exposed rooftop.

Wipe-clean fabric, replaceable rolls, branded motors with a stocked parts pipeline. Mild soap, water, and a soft cloth for routine cleaning; no harsh chemicals. The 5-year motor warranty exists because we plan to be servicing it in year three, not selling you a replacement.

Cable guides and a fine-weave mesh keep leaf litter, dust, and insects off your tables better than open-sided shading. For DBKL outlets needing a non-permanent retractable system to honour the fire-lane 6 m rule, the cable guided line retracts; ask about the removable mounting variant.

Manual cable guided suits small terraces, single shades, and tight budgets. Staff roll the shade down before service and back up after. Mechanism stays the same; you trade a daily two-minute task for a lower entry capex. Choose manual for one or two shades over a small alfresco.

Motorised pulls ahead with multiple shades. One button raises and lowers the entire alfresco section together, so nobody walks the line during a sudden 5pm storm. Add sun and wind sensors to auto-raise during gust events. Recommended once you have 4 or more shades.

Motorised systems are compatible with HomeKit, Alexa, Google Home, and Matter or Thread (motor-dependent; confirmed at quote). Standalone WiFi motors do not need a hub. Schedule open at 11am, close after last service, and pair with weather sensors for hands-off operation.

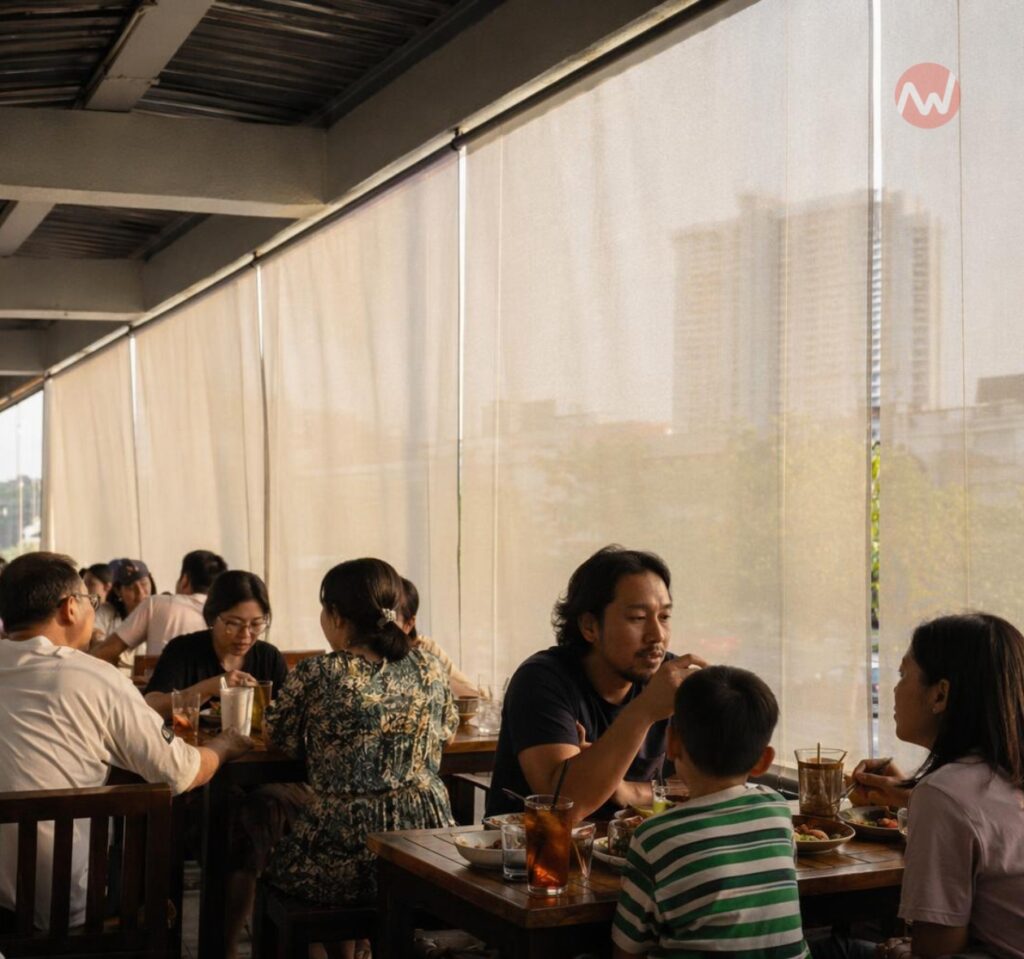

Sunscreen mesh maintains view-through and lets the breeze pass while blocking direct sightlines from a busy street or adjacent unit. Tables on the perimeter feel private without becoming a curtained box. Pick the openness (1, 3, or 5 percent) for the privacy-and-view balance you want.

Flame-retardant fabric options are available where required by venue or regulator. Specify NFPA 701-grade fabric at quote when grills, oven hoods, or live cooking stations are within fabric reach.

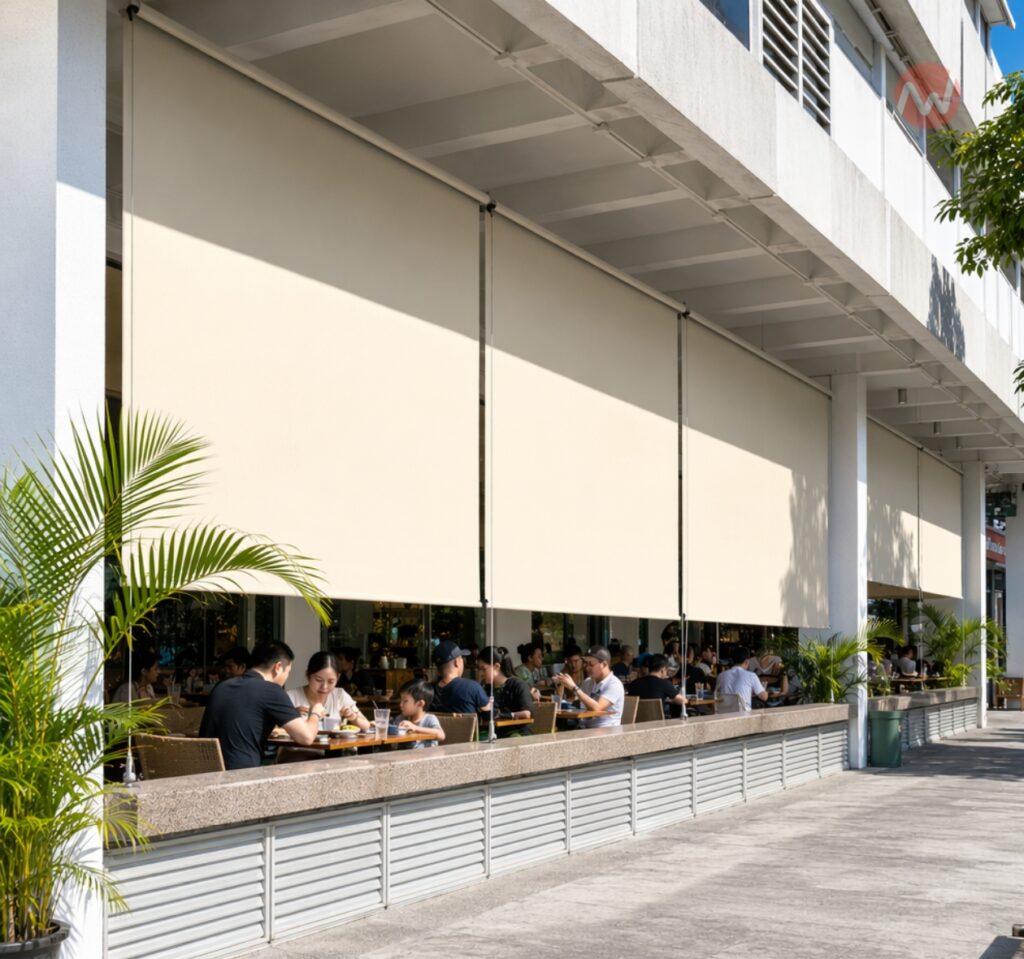

Stainless brackets and tensioned cable guides keep the system aligned through years of high-traffic deployment. No sagging, no drift, no service-call drag on a Friday night. The 3-year system warranty covers the cables, hardware, and fabric.

Manual continuous-loop, motorised remote, motorised WiFi smart-home. Exposed roll or cassette headrail. 50, 65, or 80 mm tube. Wall, ceiling, soffit, or pergola mount. Width up to 4 m on the 50 mm tube; up to 6 m on heavy-duty 65 or 80 mm. Above 6 m, route to RaynStop Zipscreen or Renson Fixscreen.

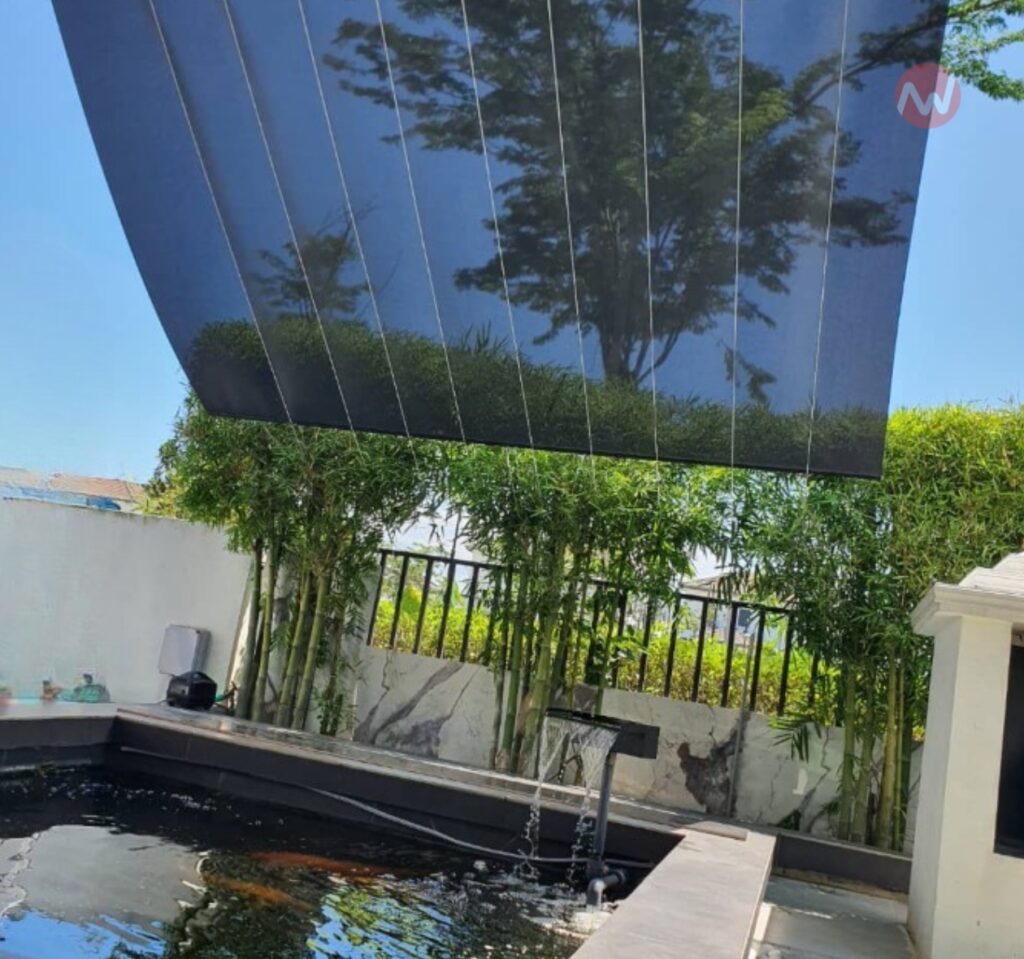

16 standard fabric colours through our manufacturing partner catalogue. RAL options on the powder-coated headrail and bottom bar where the brief calls for the cassette to disappear into the facade. Privacy and view-through meshes are selectable by openness.

A short consult to confirm structural fit (DBKL fire-lane and 6 m rule, mall structural limits, older shophouse load), fabric selection, motor and ecosystem confirmation, then scheduled install. The first visit is free.

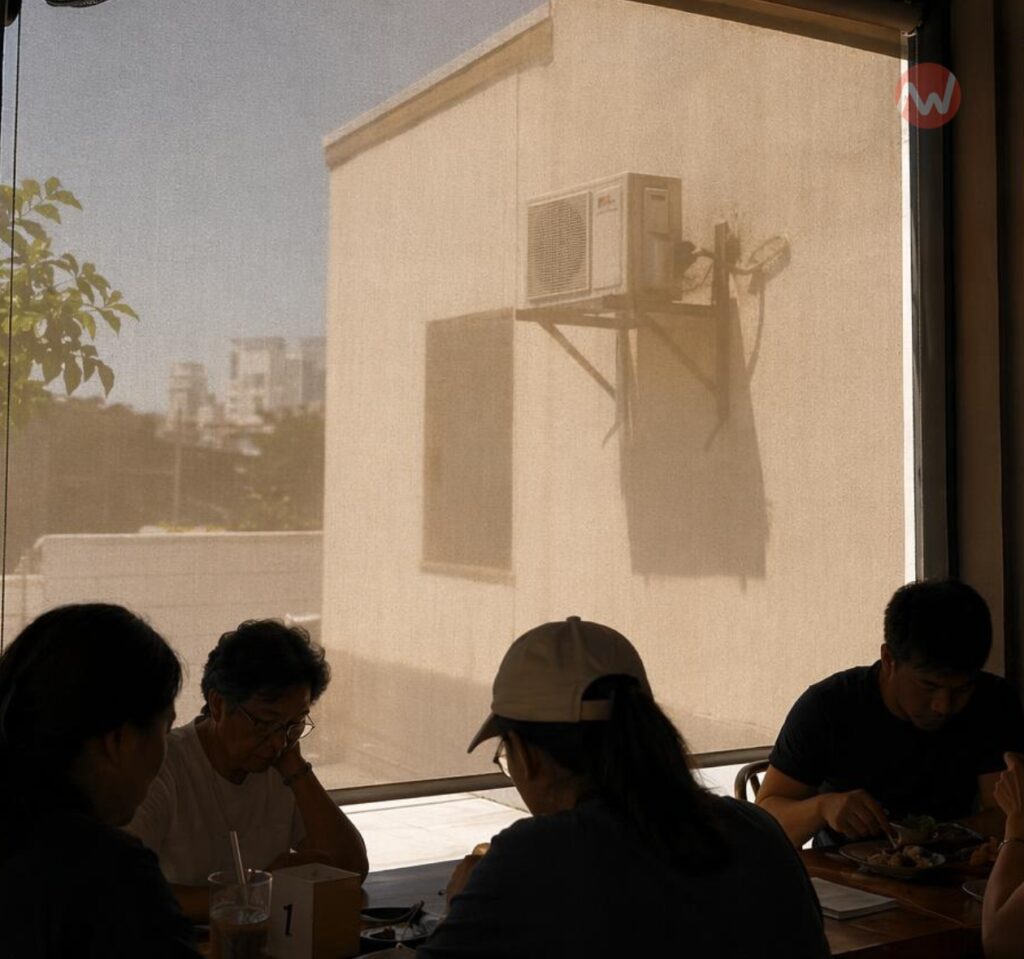

A porous frontage with no shading runs the indoor AC harder and pushes the boundary tables out of comfort range. Sunscreen mesh cuts the radiant heat at the boundary, not just at the glass, so the AC works less and the alfresco section remains usable through the lunch peak.

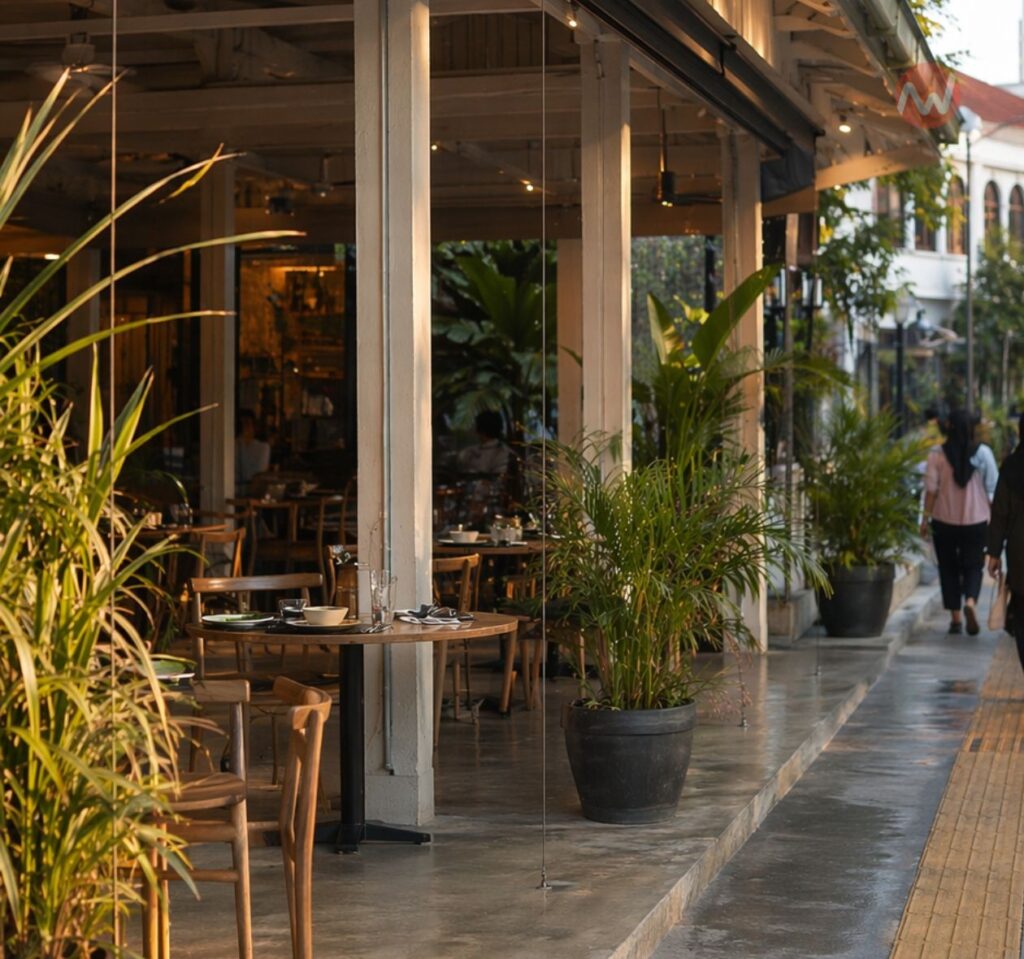

Cable guided mounts to facade, soffit, pergola, or a standalone frame, retractable rather than bolted. Designed around the DBKL 6 m fire-lane rule, not against it. Ask us for the removable variant when the council inspector flags it.

True for cheap manual shading: staff give up, the section sits shut, the view dies. Not true for sunscreen mesh plus motorised: the view stays, the breeze passes, nobody walks the line at 5pm. Pick the mesh openness (1, 3, or 5 percent) for your privacy-and-view balance.

Run the rain-day math: covers lost x average ticket x weather days x the viral apology that empties seats for a week. Cable guided is the entry-tier capex that defends the opex line. If your spec needs hospitality-grade detailing or a documented hurricane rating, we will say so and route you to Renson Fixscreen.

The cables are visible by design, slim, vertical, close to the wall, and that is the entry-tier price point. For a sealed-edge facade where the guides disappear into the channel, route to RaynStop Zipscreen (mid tier) or Renson Fixscreen (top tier). Same fabricator, different rung.
