Lutron Roller Shades
You have stayed in a suite where the shading rises quietly, aligns perfectly, and disappears into the ceiling.
The Four Seasons, the St. Regis, the Aman, the Bulgari. We fabricate the same Lutron Roller Shade family for Malaysian and Singaporean homes that ask for the same standard, in the configuration your architecture asks for.
Recessed at 305 millimetres. Aligned within 3 millimetres. Below 35 decibels. One keypad. Below, choose the line that fits your home stage, see how it is specified before the ceiling closes, and read the warranty stack that runs eight years on Lutron and five years on us.
Trusted, Loved And Installed By

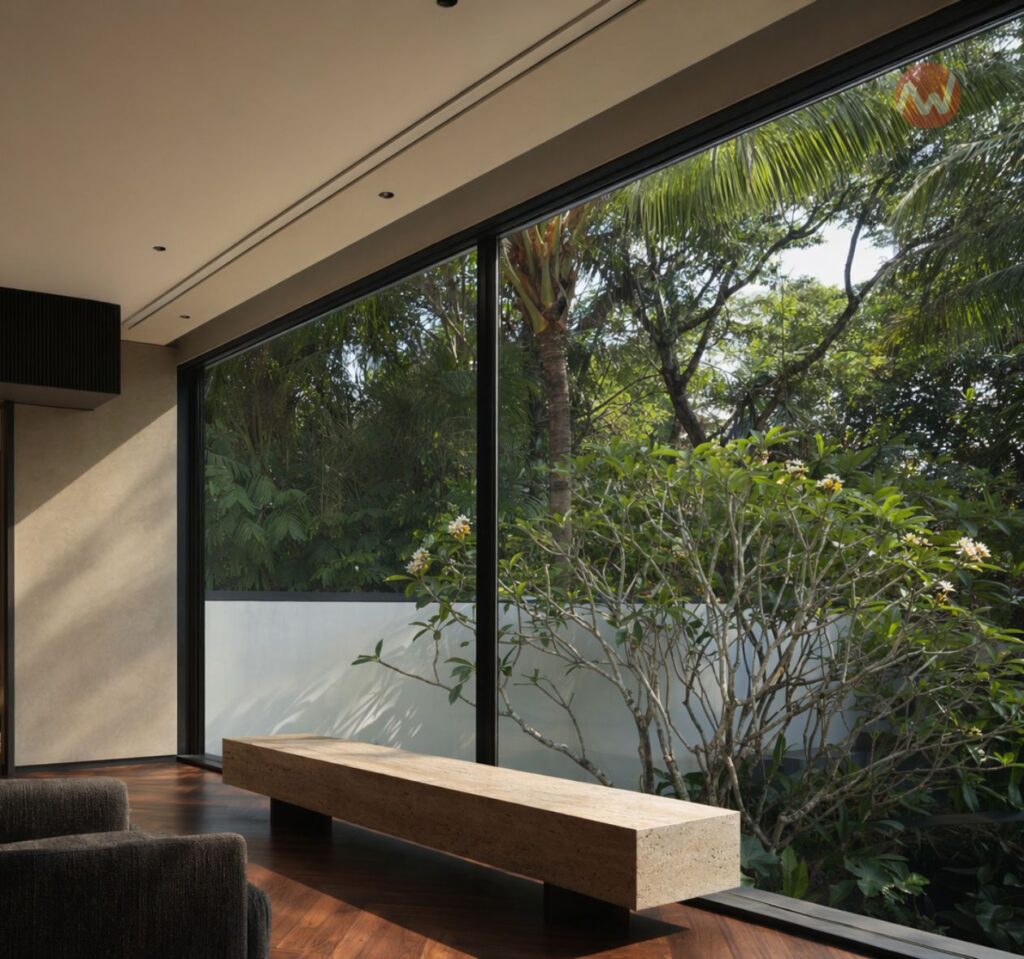

Designed to disappear into your architecture.
In a room detailed by an architect, the roller shade hides in the headrail line. The Lutron pocket on Sivoia QS R100 measures 127 mm by 127 mm, sized to recess into the soffit reserved at first concept. R225 takes a 178 mm pocket for atrium-scale glass. The drive sits inside the chassis. You see the fabric. You see the daylight it filters. You do not see the mechanism.
Designed to disappear into your architecture.
In a room detailed by an architect, the roller shade hides in the headrail line. The Lutron pocket on Sivoia QS R100 measures 127 mm by 127 mm, sized to recess into the soffit reserved at first concept. R225 takes a 178 mm pocket for atrium-scale glass. The drive sits inside the chassis. You see the fabric. You see the daylight it filters. You do not see the mechanism.
Recessed into the ceiling pocket.
Sivoia QS chassis dimensions are 127 mm by 127 mm on R100, R150, R200CW, and R300, scaling to 178 mm by 178 mm on R225 for monumental glazing. The headrail disappears into the pocket the architect detailed before the ceiling closed. The shade reads as part of the joinery, not a fitting added to it.
Finished to the fabric library Lutron carries.
The full Lutron fabric library is available, spanning blackout, dim-out, sunscreen, and sheer fabrics with the THEIA solar-screen certification holding openness factor to plus or minus 0.75 percent. Hospitality projects pull from the same library. The roller shade reads as one continuous treatment across the room, the corridor, or the wall of glass.
Headrail line that hides the mechanism.
Pocket and fascia treatments cover the headrail in three architectural profiles: Pocket (recessed), Fascia, and Fascia with top back cover. The exposed-headrail option leaves the line minimalist for modern interiors. In every option, the motor, the cabling, and the drive electronics stay inside the chassis. The reader of the room sees craft, not equipment.

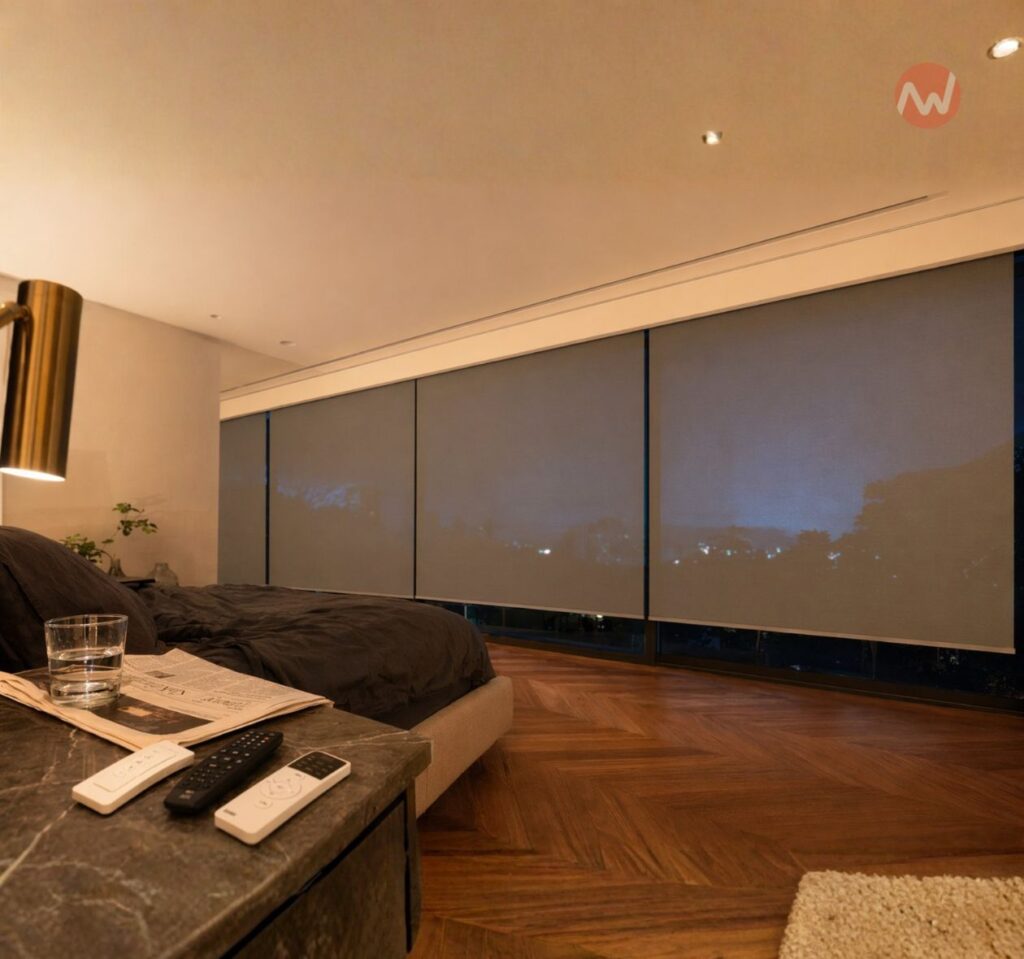

Even a luxury install could still be doing this.
Even at the Four Seasons, you have heard the motor at 11 p.m. You have seen three shades stop at three slightly different heights across the wall of glass. You have reached for one remote, then a second, then a third. You have caught the afternoon sun before the right cord was found. The right Lutron install resolves these once, before the ceiling closes.
Even a luxury install could still be doing this.
Even at the Four Seasons, you have heard the motor at 11 p.m. You have seen three shades stop at three slightly different heights across the wall of glass. You have reached for one remote, then a second, then a third. You have caught the afternoon sun before the right cord was found. The right Lutron install resolves these once, before the ceiling closes.
Three remotes become one keypad scene.
Before this, the morning shade was a manual lift. The evening shade was a different remote. The afternoon was a search for the right cord. After this, the Welcome scene rises before you do. The Dinner Party scene drops the rollers, dims the lights, and brings the drapery forward in one keypad press. Hyperion follows the sun. The room moves with the household.
Three heights become one line.
Across a wall of glass, you noticed it. Three shades, three slightly different stop points, a line your eye corrected at every glance. Even a luxury install could do this. After this, Intelligent Hembar Alignment holds the line within 3 millimetres at every shade, every position, every time. The eye stops correcting.
The loudest thing at 3 a.m. becomes inaudible.
Before this, the motor was the thing that woke the spouse. After this, the shade rises below 35 decibels at three feet, soft start, soft stop, position retained through power loss. The motor moves below the threshold of the air conditioning. You stop noticing it.
Three schedules become one named scene.
Before this, the shading, the lighting, and the drapery moved on different schedules and different remotes. After this, Welcome, Open House, Dinner Party, Cinema, Quiet Morning, Sundown, Goodnight, and Garden run from one keypad on the same Lutron processor. The household lives the scenes it named.
The bridge: specified before the ceiling closes.
The before-and-after happens once, when the M&E is still open and the Lutron Roller Shade family is specified into the room. The atelier walks the architect, the interior designer, and the AV integrator through chassis sizing, pocket depth, fabric library, and keypad locations. Sign-off in the showroom. Production after. Lived in the next morning.

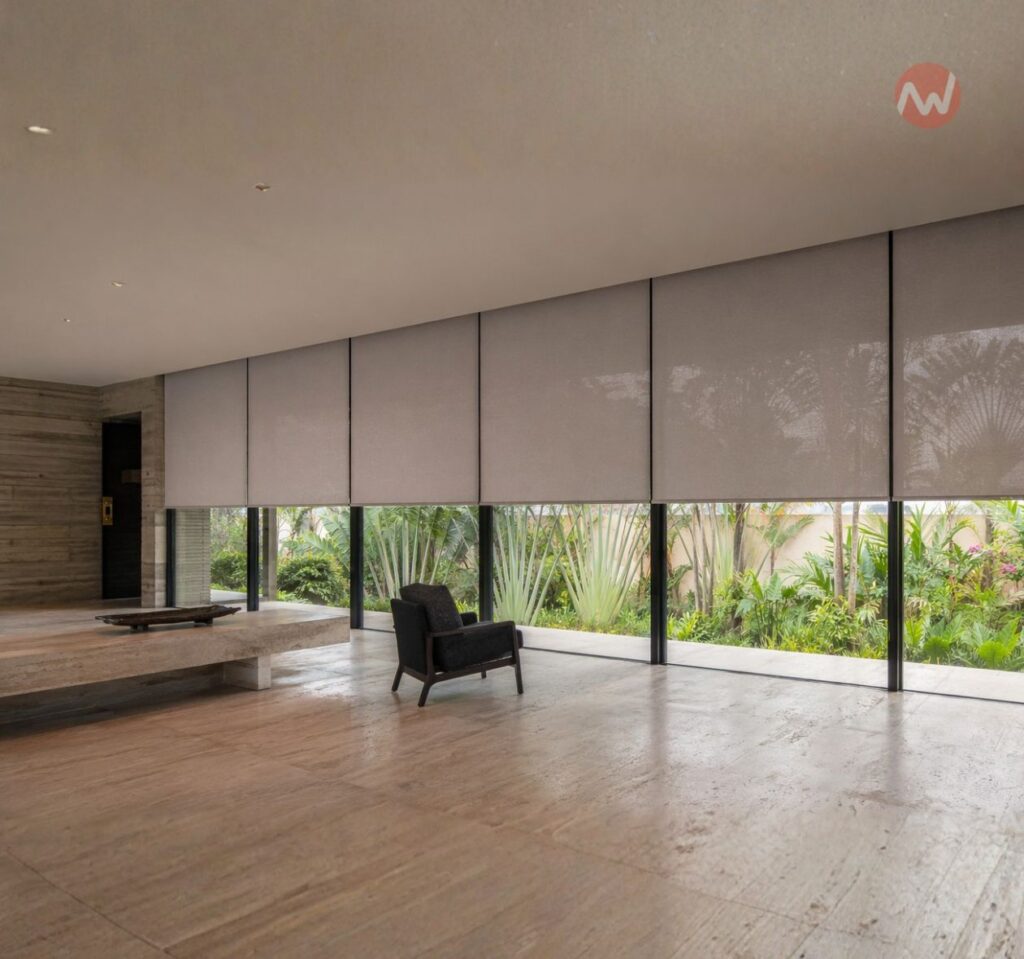

Aligned across every window.
Across a wall of windows, every bottom bar lines up across the run. Intelligent Hembar Alignment, the Lutron-patented system that monitors motor speed 500 times per second, holds bottom bars within 3 millimetres at all times, including at non-preset stops. A row of eight living-room shades reads as one continuous treatment.
Aligned across every window.
Across a wall of windows, every bottom bar lines up across the run. Intelligent Hembar Alignment, the Lutron-patented system that monitors motor speed 500 times per second, holds bottom bars within 3 millimetres at all times, including at non-preset stops. A row of eight living-room shades reads as one continuous treatment.
Bottom bars within 3 millimetres.
Intelligent Hembar Alignment is included on every Sivoia QS shade, in three deployment levels. Standard is factory pre-calibrated. Customised accounts for lot-to-lot fabric variation. Advanced integrates with Quantum for sloped roofs and choreographed movement across an entire facade. The eye detects a quarter-inch difference at five feet. IHA holds the line below that threshold.
The motor checks itself 500 times per second.
Sivoia QS drive electronics monitor motor speed 500 times per second, with closed-loop electronic speed control paired to roll-up diameter compensation. As the fabric wraps the tube and the diameter changes, the drive varies RPM so the hembar linear speed stays constant. The shade descends at the same pace the eye expects, from full open to full close.
Stored presets, recalled to the millimetre.
Programmed limits and presets are retained for the product’s lifetime through power loss. The Welcome scene that drops the shades to the same angle every morning continues to drop them to the same angle the next morning. The room remembers itself.

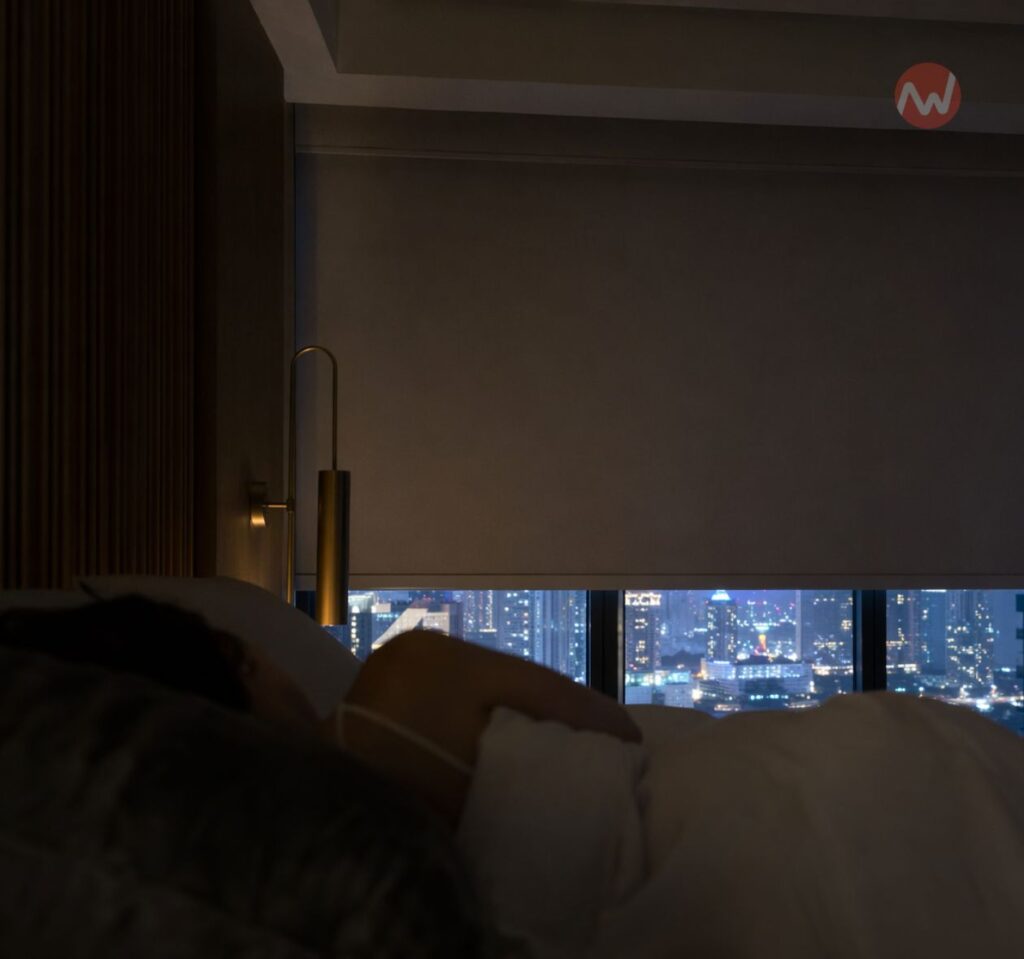

Quiet enough to forget.
The Sivoia QS R64 drive will not exceed 35 dBA measured at three feet, per Lutron Specification Submittal 085705c. That is roughly the level of a quiet library. A bedside reader will not hear it. A guestroom sleeper will not be roused. The room stays as you left it.
Quiet enough to forget.
The Sivoia QS R64 drive will not exceed 35 dBA measured at three feet, per Lutron Specification Submittal 085705c. That is roughly the level of a quiet library. A bedside reader will not hear it. A guestroom sleeper will not be roused. The room stays as you left it.

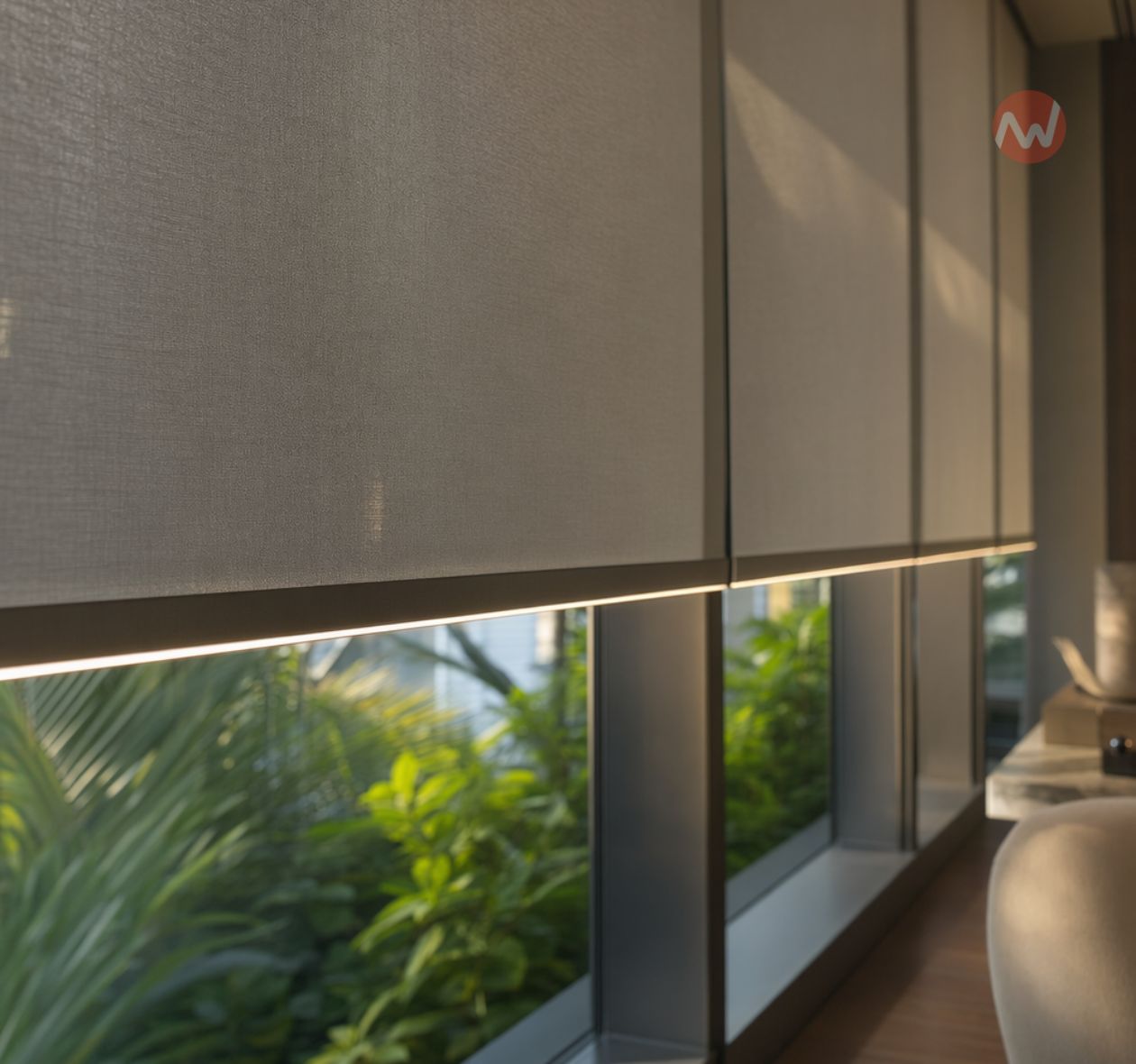

Below 35 decibels on Sivoia QS R64.
Lutron specifies the drive at no more than 35 dBA at three feet on R64. R100 is held below 38 dBA per Submittal 086106b. R225, the atrium-scale drive, also holds below 38 dBA. Quieter than a refrigerator hum. Quieter than the air conditioning. In a bedroom at 3 a.m., the shade rises and the room stays still.
Soft start, soft stop.
The Sivoia QS drive accelerates gradually and decelerates the same way. There is no mechanical click at the start of motion and no thud at the bottom of the travel. The shade moves the way a hand would move it, if a hand had the patience.
Position retention through power loss.
Programmed limits and presets survive a power outage and stay accurate for the product’s lifetime. The shades return to the same positions after the power cuts back in. No re-programming. No factory reset. No mid-evening interruption to a scene that just ran.

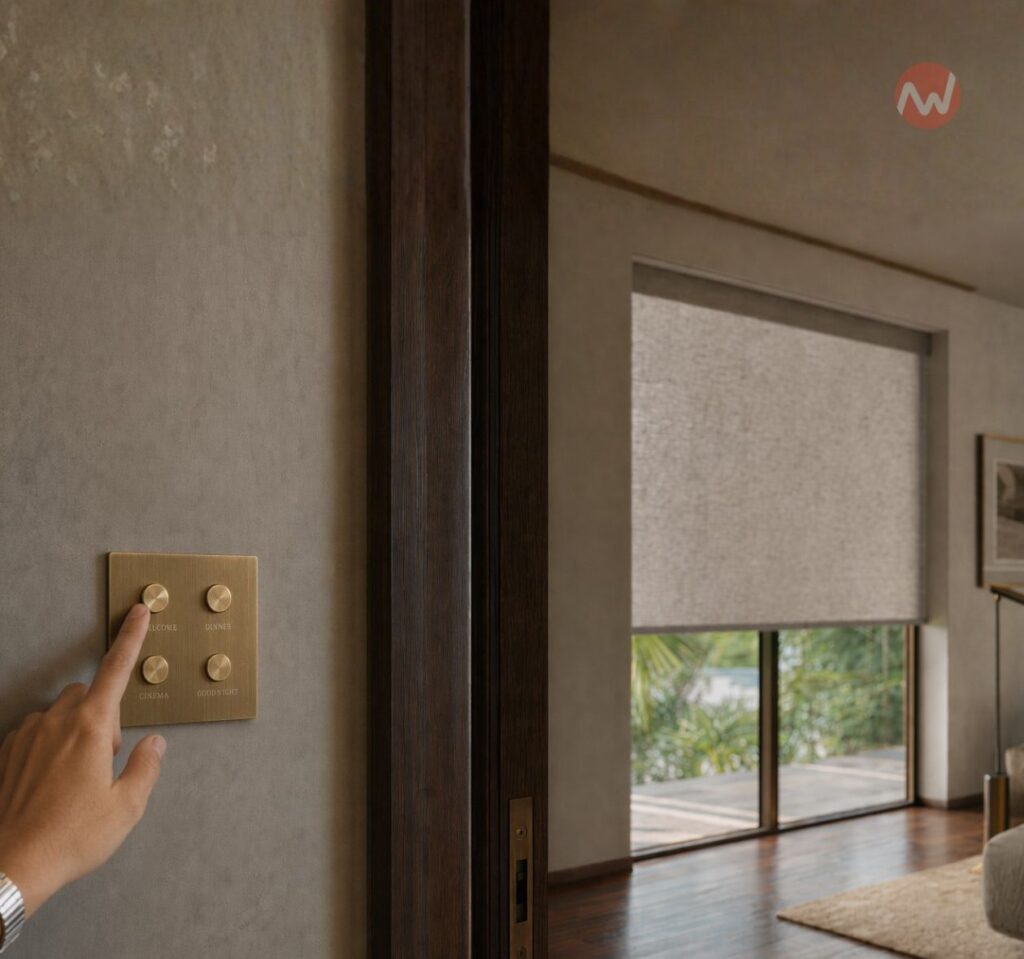

On the same processor as your lights.
Sivoia QS Roller Shades wake up on the same processor that already runs the home. The Pico remote that lowers the lights also lowers the shade. The keypad scene that opens the morning includes the roller shades. The Lutron app shows shading beside lighting on the same screen. The roller shade becomes a layer of the home, not a device on a separate system.
On the same processor as your lights.
Sivoia QS Roller Shades wake up on the same processor that already runs the home. The Pico remote that lowers the lights also lowers the shade. The keypad scene that opens the morning includes the roller shades. The Lutron app shows shading beside lighting on the same screen. The roller shade becomes a layer of the home, not a device on a separate system.
Native to HomeWorks QS, HomeWorks QSX, RadioRA 3, and Athena.
Sivoia QS connects natively to HomeWorks QS, HomeWorks QSX, RadioRA 2, RA2 Select, RadioRA 3, Quantum, GRAFIK Eye QS, myRoom XC, Athena Shade Automation Software, and Caseta PRO. No bridge. No dry-contact closure. No extra controller. The roller shade wakes up on the same processor that already runs the lights, the drapery, and the climate. ClearConnect Type A RF reaches 30 ft typical range. Triathlon joins the same processor family on Caseta Smart Bridge Pro, RA2 Select, RadioRA 2, RadioRA 3, HomeWorks QS, and HomeWorks QSX. Serena connects on Caseta Smart Bridge or Smart Bridge Pro.
Pico remotes, seeTouch QS, Sunnata, Palladiom, and Alisse keypads.
The Pico remote that runs the evening scene also adjusts the roller shades. The keypad your architect drew into the room schedule controls them. Custom engravings (Welcome, Open House, Dinner Party, Cinema, Quiet Morning, Sundown, Goodnight, Garden) name the scenes the household actually lives by. No new app. No new device.
Voice via HomeKit, Alexa, and Google Home.
Voice control arrives through Lutron bridges into Apple HomeKit, Amazon Alexa, and Google Home. The phrase that already lowers the lights in the master bedroom also lowers the shades. The voice integration is Lutron’s, not a third-party plugin.
The shades track the sun for you.
Lutron’s Hyperion Solar Adaptive shading on HomeWorks QSX and RadioRA 3 reads four sun modes (Direct Sun, Reflected Sun, Bright Sky, Overcast) and moves the shade position through the day. Glare disappears without the homeowner thinking about it. The room is always at the right light.

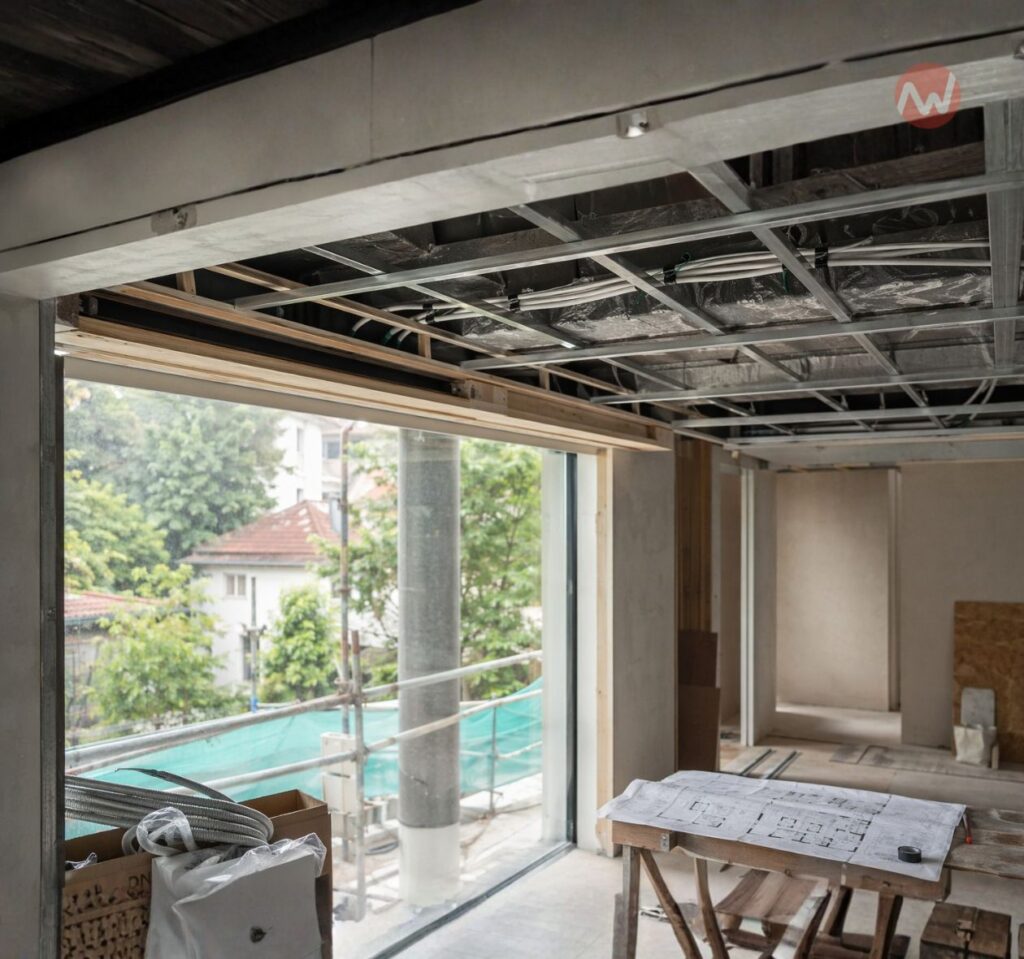

Specified before the ceiling closes.
The roller shade that disappears into the architecture is the roller shade that was specified when the ceilings were still open. Sivoia QS is hardwired on Class 2, 35 V Lutron QS bus. The wiring decisions happen during M&E, not after move-in.
Specified before the ceiling closes.
The roller shade that disappears into the architecture is the roller shade that was specified when the ceilings were still open. Sivoia QS is hardwired on Class 2, 35 V Lutron QS bus. The wiring decisions happen during M&E, not after move-in.
A conversation with the architect, the interior designer, and the AV integrator.
We sit with the architect, the interior designer, and the AV integrator before the joinery is finalised. We walk through chassis sizing, pocket depth, fabric selection, fascia profile, and keypad locations. The roller shade is detailed into the room, not retrofitted onto it.
A mock-up before mass production.
Per CSI 12 22 16 workflow, we mock up the fabric, the openness factor, and the integration scene before any shade is fabricated. The homeowner, the spouse, and the interior designer approve the look in the showroom. Mass production starts after sign-off.
Five questions for your architect.
Before the ceiling closes: where does the chassis recess. What is the wiring path from the QS bus to the headrail. Which scenes will the shades appear in. Which Pico or keypad runs which group. Which openness factor matches the orientation and the glazing. Ask these now, not after move-in.

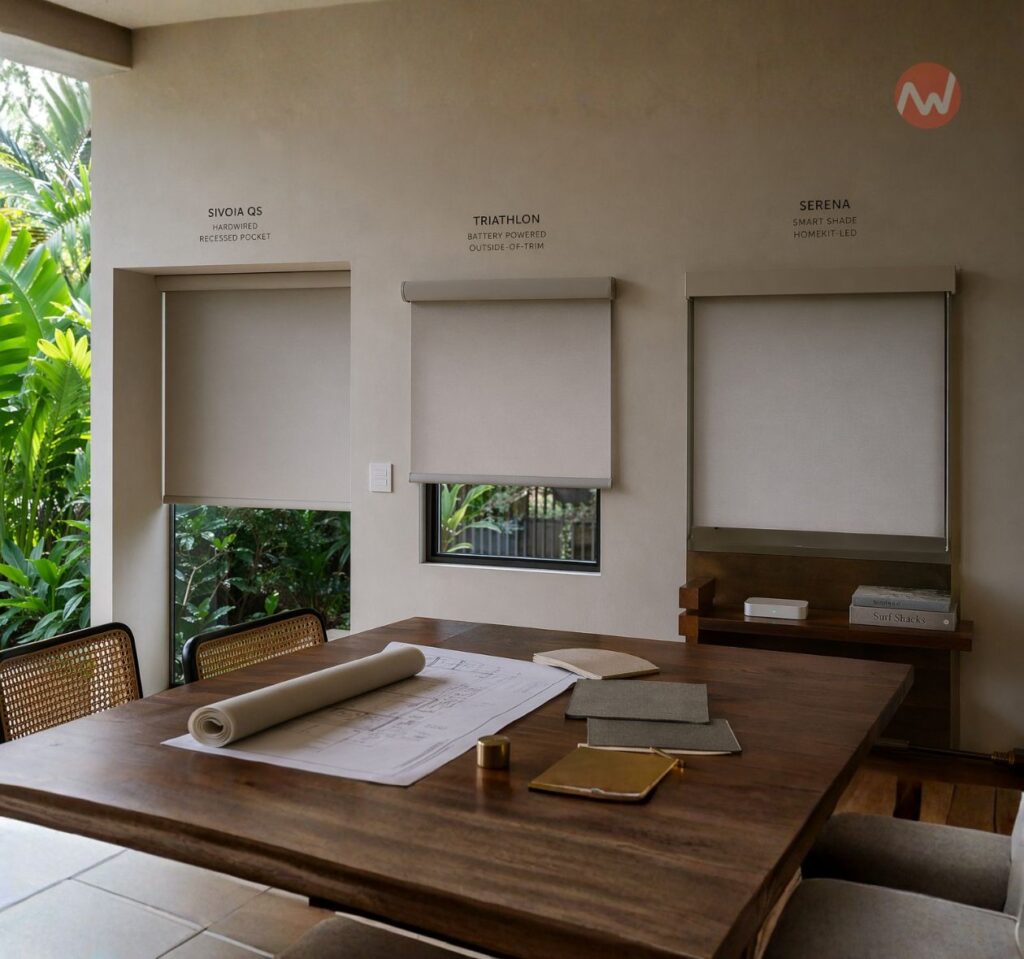

Sivoia QS, Triathlon, or Serena: choose by home stage.
The Lutron Roller Shade family runs across three lines, each keyed to a home stage. The home you are building now. The home you are renovating. The Apple home you are upgrading. The right line is the one that fits the home's current state without compromise.
Sivoia QS, Triathlon, or Serena: choose by home stage.
The Lutron Roller Shade family runs across three lines, each keyed to a home stage. The home you are building now. The home you are renovating. The Apple home you are upgrading. The right line is the one that fits the home's current state without compromise.
Sivoia QS for the home where the ceiling is still open.
For the home in build or renovation where the M&E is still active and the ceiling has not closed. Hardwired through the Lutron QS bus on Class 2, 35 V. Drive families R64 through R300, sized to the window. R64 below 35 dBA. IHA holds bottom bars within 3 millimetres. Full QS bus integration with HomeWorks, RadioRA 3, Quantum, GRAFIK Eye QS, and Crestron, Control4, Savant via LEAP API. Coupled systems on R100, R150, R200CW, and R300, with one drive operating up to six shades. Tensioned and cable-guided variants for skylights and angled facades.
Triathlon for the home already lived in.
Battery-powered or 12V wired, with ClearConnect RF throughout. D-cell alkaline batteries deliver 3 to 5 years of life through Lutron’s Active Energy Optimization. The Battery Boost option on shades wider than 37.5 inches extends life to 6 years. Widths to 108 inches. 38 dBA at three feet. Full Lutron ecosystem reach: Caseta Smart Bridge Pro, RA2 Select, RadioRA 3, HomeWorks QS, and HomeWorks QSX. The line specified when the home is built and the M&E cannot be reopened.
Serena for the Apple home retrofit.
Battery-powered, native to Apple HomeKit through the Caseta Smart Bridge. Widths to 96 inches. The Lutron fabric library at the entry into the Lutron tier. The line specified when the household lives on HomeKit scenes and Caseta lighting is already in the home.
The atelier reviews each project at the M&E stage.
The decision between Sivoia QS, Triathlon, and Serena is rarely contested once the wiring path is on the table. The atelier walks through home stage, fabric scope, control system, and budget before the line is confirmed.
Complete Technical Specifications for Lutron Roller Shades
What materials are Lutron Roller Shades made from?
Lutron Roller Shades use the full Lutron fabric library spanning blackout, dim-out, sunscreen, and sheer collections, an aluminium chassis sized to the drive family from 89 mm on R64 through 178 mm on R225, and the Lutron precision motor housed inside the chassis, per Lutron Specification Submittals 085705c (R64, 2023) and 086106b (R100, 2017).
Luxury residential and hospitality projects where the fabric must coordinate with the joinery palette, and the chassis must recess into the architectural pocket without altering the headrail line.
Fabric library
The full Lutron fabric library is available: more than 600 designer fabrics organised across four named collections (Classico, Gallery, Atelier, Commercial), spanning blackout (opaque), dim-out (1 to 3 percent openness), sunscreen (5 to 10 percent openness), and sheer types. R225 atrium-scale shading narrows to 500 plus designer fabrics. THEIA solar-screen-certified fabrics hold openness factor to plus or minus 0.75 percent and visible light transmittance to plus or minus 1 percent, measured per EN 14500:2008 and ASTM 903. Performance Shading Advisor selects the fabric to the project. Sustainability-certified options include GREENGUARD, RoHS, Cradle to Cradle, PVC-free, fire-rated, anti-microbial, and lead-free.
Tube and chassis sizing
Tubes range from 41 mm (R64) through 65 to 76 mm (R100, R150, R200CW, R300) and 95 mm (R225). On the recessed single pocket configuration, R64 measures 4 in by 4 in (102 mm by 102 mm), R100 measures 4.75 in by 5 in (120 mm by 127 mm) per Lutron's product configurator (accessed 2026-05-21), and R225 expands to 7 in by 7 in (178 mm by 178 mm) for atrium-scale loads. Width Integrated Deflection Reduction (WIDR) carbon fiber tubing is auto-specified by the Lutron Quoting Tool when fabric span risks deflection, extending R64 single-panel widths to 12 ft (144 in).
Top treatment options menu
Metal Fascia in 2.75 in, 3.5 in (3.5 in by 3.5 in pocket), and 4 in (4 in by 4 in pocket) profiles. Recessed Single Pocket in 3.5 in, 4 in, 5 in (4.75 in by 5 in on R100), and 7 in (7 in by 7 in on R225). Recessed Dual Pocket in 5.5 in by 7.5 in on R64 and 7 in by 11 in on R100, sized to carry a sheer plus blackout in one window opening. Pocket and fascia metal finishes in white, black, bronze, silver, or custom color. A no-top-treatment option leaves the headrail exposed for minimalist interiors.
Hembar options
Exposed, Sealed, Exposed Architectural, Half-Wrap Architectural, and Designer hembars are available. Half-Wrap is the standard recommendation for dual-sided fabrics. Designer hembars carry ornate fitout work in luxury residential.
Side channels for blackout
Aluminium side channels in 1.5 in, 2.5 in, and 3.5 in profiles are available with internal wool pile for true blackout performance in bedrooms and media rooms. The 2.5 in profile is the most-specified for residential.
Specialty configurations
Tensioned shades for skylights and bottom-up applications, cable-guided shades for angled facades up to 20 degrees, and curved couplers up to 45 degrees are available on Sivoia QS only.
How big can a single Lutron Roller Shade go?
A single Lutron Sivoia QS Roller Shade scales from 64 square feet on R64 (widths to 12 ft on the WIDR option) through 225 square feet on R225 (widths to 18 ft / 5.5 m) and 300 square feet on R300 in the LIFT configuration (single panels to 12 ft wide and 30 ft tall), with coupled systems on R100, R150, and R300 running up to six panels from a single drive, per Lutron Specification Submittals 085705c, 086106b, and the MY/SG Complete Guide (2026).
Architects detailing monumental glazing, coupled facades, or curtain-wall openings where a single roller shade must serve a wall of glass without joints, and luxury hospitality corridors where bottom-bar consistency across long runs is non-negotiable.
R64, the bedroom and study drive
R64 covers windows up to 64 sq ft (5.9 sq m) with standard widths to 8 ft (2.44 m) and the WIDR option to 12 ft (3.66 m). The most-specified drive for Malaysian luxury residential bedrooms and studies. Quietest in the family at no more than 35 dBA at three feet.
R100, the double-volume living-room drive
R100 covers up to 100 sq ft (9.3 sq m) per drive. Single-panel width range 24 in to 176 in (610 mm to 4.47 m) per [Lutron.com](http://Lutron.com) (accessed 2026-05-20). The typical specification for Malaysian double-volume living rooms and master bedrooms sits around 10 ft (3 m); the drive scales to 176 in single-panel when the glazing demands it. The workhorse of the family in luxury residential.
R200CW, the curtain-wall configuration
R200CW covers up to 200 sq ft (18.6 sq m) total across the coupled run with up to six shade panels operating from a single drive. The drive runs at 1 in/sec, one-third the standard speed, to handle the additional load. The right answer for a continuous office floor plate or a curved curtain wall.
R225, the atrium drive
R225 covers up to 225 sq ft (20.9 sq m). Single-panel width range 31.75 in to 190 in (806 mm to 4.83 m / 15.83 ft) per [Lutron.com](http://Lutron.com) (accessed 2026-05-20). Spring assist for tall narrow shades. Selected for atriums, double-height window walls, and monumental glazing.
R300, the LIFT system
R300, marketed as LIFT (Lutron Intelligent Facade Technology), covers up to 300 sq ft (27.9 sq m) per drive. Single panels run to 12 ft wide and 30 ft tall. Up to six coupled panels per drive. Noise 38 to 50 dBA depending on configuration. Reserved for monumental glazing in luxury double-volume spaces.
Shade speed and deflection control
Bottom-bar speed runs at 3.6 in/sec (91.4 mm/sec) across the Sivoia QS family per Lutron's product configurator (accessed 2026-05-21), with R200CW reducing to 1 in/sec to manage coupled loads. WIDR carbon-fiber deflection tubes resist sag on wider spans, holding fabric flatness on R64 widths past the standard tube range and on R100 and above as required by the project.
How quiet is the Lutron Roller Shade motor at three feet?
The Sivoia QS R64 drive will not exceed 35 dBA at three feet, per Lutron Specification Submittal 085705c (2023). R100 holds below 38 dBA per Submittal 086106b (2017). R225 also holds below 38 dBA. R300 in coupled configurations operates at 38 to 50 dBA. Triathlon, the battery-powered retrofit tier, is held at 38 dBA at three feet per Lutron Specification Submittal 085312k (2025).
Bedroom, nursery, home-office, and hospitality guestroom installations where the homeowner expects motorised motion to remain inaudible at sleep distance.
R64 at sub-35 decibels
Lutron specifies the R64 drive at no more than 35 dBA at three feet (1 m) per Submittal 085705c. The sound level sits roughly at the threshold of a quiet library. A bedside reader will not hear it. A guestroom sleeper will not be roused.
R100 below 38 decibels
Lutron specifies the R100 drive at no more than 38 dBA at three feet per Submittal 086106b. Quieter than a refrigerator hum. Quieter than the air conditioning. Sits comfortably in a double-volume living room without intruding on conversation.
R225 atrium-scale, still below 38 decibels
R225 carries the additional torque for spans to 18 ft wide and still holds below 38 dBA. The quietness is engineered into the drive electronics, not a function of drive size.
R300 coupled, 38 to 50 decibels by configuration
R300 runs in coupled mode at 38 to 50 dBA depending on the number of panels and the panel weights. The drive moves at 1 in/sec to manage the load.
Triathlon at 38 decibels
Triathlon, the battery-powered retrofit drive, is held at 38 dBA at three feet per Submittal 085312k. In a bedroom, the homeowner hears the air conditioning before they hear the Triathlon drive.
Soft start, soft stop on every drive
Sivoia QS and Triathlon both accelerate gradually at the start of motion and decelerate gradually at the end. There is no mechanical click at the start and no thud at the bottom of travel. The shade moves the way a hand would move it.
How does Lutron's Intelligent Hembar Alignment hold shades to 3 millimetres?
Intelligent Hembar Alignment is the patented two-part Lutron control system, included on every Sivoia QS shade, that monitors motor speed 500 times per second and applies roll-up diameter compensation as the fabric wraps the tube, holding bottom-bar alignment within 3 millimetres (1/8 inch) at all times across adjacent Sivoia QS shades, even at non-preset stops, per Lutron IHA technical white paper 367-2063 (2025).
Walls of windows in luxury hospitality corridors, double-volume residential glazing, and monumental atrium openings, where the line at the bottom of the shades must read as one continuous treatment without the eye catching a step.
Five-hundred-Hertz motor speed monitoring
Closed-loop electronic speed control checks motor speed 500 times per second and corrects against load, fabric wear, and tube diameter. The hembar linear speed stays constant from full open to full close, regardless of where the fabric sits on the roll.
Roll-up diameter compensation
As the fabric wraps the tube, the roll diameter grows. Without compensation, the hembar would accelerate. The Lutron drive electronics vary RPM continuously to hold linear speed constant. The shade descends at the same pace the eye expects.
Three deployment levels
Standard IHA ships factory pre-calibrated on every Sivoia QS shade. Customised IHA accounts for lot-to-lot fabric variation and shim tape applied during commissioning. Advanced IHA integrates with Quantum for sloped roofs, uneven shade lengths, and choreographed shade movement across an entire facade.
Position retention through power loss
Programmed limits and stored presets are retained for the product's lifetime through power loss. The shade returns to the same hembar position after the power cuts back in. No re-programming.
IHA is Sivoia QS only
IHA is a Sivoia QS feature and is not available on Triathlon, Serena, or other Lutron Roller lines. Triathlon holds stops within 3 millimetres of programmed limits but does not run the closed-loop speed control across adjacent shades.
What smart-home systems work with Lutron Roller Shades?
Lutron Roller Shades integrate natively with Lutron HomeWorks QS, HomeWorks QSX, RadioRA 2, RA2 Select, RadioRA 3, Quantum, GRAFIK Eye QS, myRoom XC, Athena Shade Automation Software, and Caseta PRO for Sivoia QS; with Caseta Smart Bridge Pro, RA2 Select, RadioRA 2, RadioRA 3, HomeWorks QS, and HomeWorks QSX for Triathlon; with Caseta Smart Bridge or Smart Bridge Pro for Serena; and reach Apple HomeKit, Amazon Alexa, and Google Home through Lutron bridges, using Lutron QS Wired plus Lutron QS Wireless on ClearConnect Type A RF at 30 ft (9 m) range, per the Lutron product configurator (accessed 2026-05-21).
Whole-home Lutron projects where roller shading must sit on the same control bus as the lighting, the drapery, and the climate, with voice access through the household's existing ecosystem.
Sivoia QS, native to HomeWorks
Sivoia QS connects natively to HomeWorks QS, HomeWorks QSX, RadioRA 2, RA2 Select, RadioRA 3, Quantum, GRAFIK Eye QS, myRoom XC, Athena Shade Automation Software, and Caseta PRO. Standalone operation is also supported. No bridge. No dry-contact closure. No extra controller. The shade wakes up on the same processor that already runs the lights. Athena is Lutron's commercial-grade automation platform used on BlackRock-class installations.
Triathlon, full Lutron ecosystem reach
Triathlon's ClearConnect RF wireless reaches Caseta Smart Bridge Pro, RA2 Select, RadioRA 2, RadioRA 3, HomeWorks QS, HomeWorks QSX, and GRAFIK Eye QS. The widest control compatibility in the Lutron Roller family.
Serena, the Caseta-native line
Serena connects through Caseta Smart Bridge or Smart Bridge Pro. The line specified when the household lives on HomeKit scenes and Caseta lighting is already in the home.
Voice via HomeKit, Alexa, Google Home
Voice control arrives through Lutron bridges into Apple HomeKit, Amazon Alexa, and Google Home. The voice integration is Lutron's, not a third-party plugin. Sonos integration is also supported.
Natural Light Optimization and Hyperion solar adaptive shading
Sivoia QS integrates directly with Lutron Hyperion Solar Adaptive shading on HomeWorks QSX and RadioRA 3, tracking the sun through four modes (Direct Sun, Reflected Sun, Bright Sky, Overcast). Natural Light Optimization is Lutron's consumer-facing name for the same sun-tracking shade-position feature on HomeWorks, RadioRA 3, and Athena Shade Automation Software. Documented up to 30 percent cooling savings in case-study commercial installations.
AV and BMS integration
For projects on Crestron, Control4, Savant, URC, ELAN, [Josh.ai](http://Josh.ai), or a building-management system, Sivoia QS reaches those platforms via the Lutron LEAP API or contact closure.
How are Lutron Roller Shades installed, powered, and warranted?
Sivoia QS is hardwired on Class 2, 35 V Lutron QS bus, powered by the Lutron QSPS power supply family with single, junction-box, and 10-output panel options. Triathlon is battery-powered with 3 to 5 year D-cell alkaline life through Active Energy Optimization, or 12V wired. Serena is battery-powered through Caseta. The Lutron Eight-Year Limited Warranty covers materials and the electronic drive unit (100 percent parts coverage for the first five years, pro-rated through year eight, no registration required), with a New Way Five-Year fabrication wrap on top, per the Lutron Window Systems Warranty document (2025).
Projects specifying roller shading during M&E where ceiling pockets, soffit details, and low-voltage runs can be detailed before the joinery is closed, and retrofit homes where battery-powered Triathlon or Serena preserves the existing structure.
Wiring class and voltage
Sivoia QS uses Class 2, 35 V low-voltage wiring on a 4-conductor cable (COM, V+, MUX, MUX BAR) per UL 1310 and the Lutron QSPS data sheet. Maximum daisy-chain length is 1000 ft. Wire runs over 50 ft require Link Terminators.
Power supply options
Power is delivered by the Lutron QSPS family. QSPS-P1, QSPS-P2, and QSPS-P3 plug-in supplies for one to three drives. QSPS-J junction-box supplies for in-wall hardwire installations. QSPS-10PNL, QSPSY-10PNL, QSPS-10PNL-NPM, and QSPS-30PNL-NPM panels for multi-drive installations powering up to ten Sivoia QS shades plus keypads per panel.
Battery architecture for Triathlon and Serena
Triathlon ships with 6 to 16 D-cell alkaline batteries depending on shade width and configuration, delivering 3 to 5 years of life through Lutron's Active Energy Optimization. The Battery Boost option on shades wider than 37.5 in extends life by up to 80 percent. Tip-forward headrail allows battery change without removing the shade.
Critical compatibility note
Triathlon 12V cannot share the Sivoia QS 35 V power panel. Voltage mismatch will damage components. Power architecture is confirmed during specification at the M&E stage.
Mounting options
Inside mount (jamb), outside mount on trim, outside mount above trim, ceiling mount, wall mount, jamb mount, pocket mount, fascia mount, and dual mount are all supported. All shades require blocking or structural material with fasteners rated for 75 lbs (34 kg) per fastener.
Seven SKU configurations from the Lutron product configurator
Sivoia QS ships in seven pocket and fascia configurations selected at specification, per Lutron's product configurator (accessed 2026-05-21): metal fascia 3.5 in by 3.5 in (R64, max width 144 in, max area 64 sq ft); metal fascia 4 in by 4 in (R64, max width 144 in, max area 144 sq ft); recessed single 4 in by 4 in (R64, max width 144 in, max area 144 sq ft); recessed single 4.75 in by 5 in (R100, max width 176 in, max area 100 sq ft); recessed single 7 in by 7 in (R225, max width 190 in, max area 225 sq ft); recessed dual 5.5 in by 7.5 in (R64, two independent shades in one opening); recessed dual 7 in by 11 in (R100, two independent shades in one opening, approximately 100 sq ft per motor). Metal fascia finishes ship in white, black, bronze, silver, and custom color.
Lutron Eight-Year Limited Warranty
Lutron covers materials and the electronic drive unit for eight years from shipment: 100 percent parts coverage for the first five years, pro-rated through year eight. No registration required.
New Way Five-Year fabrication wrap
New Way adds a five-year fabrication wrap on top of the Lutron warranty, covering the fabric, the chassis, and the drive housing. The wrap is the local-service layer that handles fabrication-specific issues without escalation to Lutron directly.
Safety and regulatory
ANSI/WCMA A100.1 compliance for window-covering safety. Qualifies as WCMA Best for Kids because motorisation removes hanging cords. UL 1310 Class 2 power supplies. UL listed and cUL listed (E135084). FCC Part 15, IC, CFT, CE, UKCA, NCC, TRA certifications across markets.
Lutron Roller Shades use the full Lutron fabric library spanning blackout, dim-out, sunscreen, and sheer collections, an aluminium chassis sized to the drive family from 89 mm on R64 through 178 mm on R225, and the Lutron precision motor housed inside the chassis, per Lutron Specification Submittals 085705c (R64, 2023) and 086106b (R100, 2017).
Luxury residential and hospitality projects where the fabric must coordinate with the joinery palette, and the chassis must recess into the architectural pocket without altering the headrail line.
Fabric library
The full Lutron fabric library is available: more than 600 designer fabrics organised across four named collections (Classico, Gallery, Atelier, Commercial), spanning blackout (opaque), dim-out (1 to 3 percent openness), sunscreen (5 to 10 percent openness), and sheer types. R225 atrium-scale shading narrows to 500 plus designer fabrics. THEIA solar-screen-certified fabrics hold openness factor to plus or minus 0.75 percent and visible light transmittance to plus or minus 1 percent, measured per EN 14500:2008 and ASTM 903. Performance Shading Advisor selects the fabric to the project. Sustainability-certified options include GREENGUARD, RoHS, Cradle to Cradle, PVC-free, fire-rated, anti-microbial, and lead-free.
Tube and chassis sizing
Tubes range from 41 mm (R64) through 65 to 76 mm (R100, R150, R200CW, R300) and 95 mm (R225). On the recessed single pocket configuration, R64 measures 4 in by 4 in (102 mm by 102 mm), R100 measures 4.75 in by 5 in (120 mm by 127 mm) per Lutron's product configurator (accessed 2026-05-21), and R225 expands to 7 in by 7 in (178 mm by 178 mm) for atrium-scale loads. Width Integrated Deflection Reduction (WIDR) carbon fiber tubing is auto-specified by the Lutron Quoting Tool when fabric span risks deflection, extending R64 single-panel widths to 12 ft (144 in).
Top treatment options menu
Metal Fascia in 2.75 in, 3.5 in (3.5 in by 3.5 in pocket), and 4 in (4 in by 4 in pocket) profiles. Recessed Single Pocket in 3.5 in, 4 in, 5 in (4.75 in by 5 in on R100), and 7 in (7 in by 7 in on R225). Recessed Dual Pocket in 5.5 in by 7.5 in on R64 and 7 in by 11 in on R100, sized to carry a sheer plus blackout in one window opening. Pocket and fascia metal finishes in white, black, bronze, silver, or custom color. A no-top-treatment option leaves the headrail exposed for minimalist interiors.
Hembar options
Exposed, Sealed, Exposed Architectural, Half-Wrap Architectural, and Designer hembars are available. Half-Wrap is the standard recommendation for dual-sided fabrics. Designer hembars carry ornate fitout work in luxury residential.
Side channels for blackout
Aluminium side channels in 1.5 in, 2.5 in, and 3.5 in profiles are available with internal wool pile for true blackout performance in bedrooms and media rooms. The 2.5 in profile is the most-specified for residential.
Specialty configurations
Tensioned shades for skylights and bottom-up applications, cable-guided shades for angled facades up to 20 degrees, and curved couplers up to 45 degrees are available on Sivoia QS only.
A single Lutron Sivoia QS Roller Shade scales from 64 square feet on R64 (widths to 12 ft on the WIDR option) through 225 square feet on R225 (widths to 18 ft / 5.5 m) and 300 square feet on R300 in the LIFT configuration (single panels to 12 ft wide and 30 ft tall), with coupled systems on R100, R150, and R300 running up to six panels from a single drive, per Lutron Specification Submittals 085705c, 086106b, and the MY/SG Complete Guide (2026).
Architects detailing monumental glazing, coupled facades, or curtain-wall openings where a single roller shade must serve a wall of glass without joints, and luxury hospitality corridors where bottom-bar consistency across long runs is non-negotiable.
R64, the bedroom and study drive
R64 covers windows up to 64 sq ft (5.9 sq m) with standard widths to 8 ft (2.44 m) and the WIDR option to 12 ft (3.66 m). The most-specified drive for Malaysian luxury residential bedrooms and studies. Quietest in the family at no more than 35 dBA at three feet.
R100, the double-volume living-room drive
R100 covers up to 100 sq ft (9.3 sq m) per drive. Single-panel width range 24 in to 176 in (610 mm to 4.47 m) per [Lutron.com](http://Lutron.com) (accessed 2026-05-20). The typical specification for Malaysian double-volume living rooms and master bedrooms sits around 10 ft (3 m); the drive scales to 176 in single-panel when the glazing demands it. The workhorse of the family in luxury residential.
R200CW, the curtain-wall configuration
R200CW covers up to 200 sq ft (18.6 sq m) total across the coupled run with up to six shade panels operating from a single drive. The drive runs at 1 in/sec, one-third the standard speed, to handle the additional load. The right answer for a continuous office floor plate or a curved curtain wall.
R225, the atrium drive
R225 covers up to 225 sq ft (20.9 sq m). Single-panel width range 31.75 in to 190 in (806 mm to 4.83 m / 15.83 ft) per [Lutron.com](http://Lutron.com) (accessed 2026-05-20). Spring assist for tall narrow shades. Selected for atriums, double-height window walls, and monumental glazing.
R300, the LIFT system
R300, marketed as LIFT (Lutron Intelligent Facade Technology), covers up to 300 sq ft (27.9 sq m) per drive. Single panels run to 12 ft wide and 30 ft tall. Up to six coupled panels per drive. Noise 38 to 50 dBA depending on configuration. Reserved for monumental glazing in luxury double-volume spaces.
Shade speed and deflection control
Bottom-bar speed runs at 3.6 in/sec (91.4 mm/sec) across the Sivoia QS family per Lutron's product configurator (accessed 2026-05-21), with R200CW reducing to 1 in/sec to manage coupled loads. WIDR carbon-fiber deflection tubes resist sag on wider spans, holding fabric flatness on R64 widths past the standard tube range and on R100 and above as required by the project.
The Sivoia QS R64 drive will not exceed 35 dBA at three feet, per Lutron Specification Submittal 085705c (2023). R100 holds below 38 dBA per Submittal 086106b (2017). R225 also holds below 38 dBA. R300 in coupled configurations operates at 38 to 50 dBA. Triathlon, the battery-powered retrofit tier, is held at 38 dBA at three feet per Lutron Specification Submittal 085312k (2025).
Bedroom, nursery, home-office, and hospitality guestroom installations where the homeowner expects motorised motion to remain inaudible at sleep distance.
R64 at sub-35 decibels
Lutron specifies the R64 drive at no more than 35 dBA at three feet (1 m) per Submittal 085705c. The sound level sits roughly at the threshold of a quiet library. A bedside reader will not hear it. A guestroom sleeper will not be roused.
R100 below 38 decibels
Lutron specifies the R100 drive at no more than 38 dBA at three feet per Submittal 086106b. Quieter than a refrigerator hum. Quieter than the air conditioning. Sits comfortably in a double-volume living room without intruding on conversation.
R225 atrium-scale, still below 38 decibels
R225 carries the additional torque for spans to 18 ft wide and still holds below 38 dBA. The quietness is engineered into the drive electronics, not a function of drive size.
R300 coupled, 38 to 50 decibels by configuration
R300 runs in coupled mode at 38 to 50 dBA depending on the number of panels and the panel weights. The drive moves at 1 in/sec to manage the load.
Triathlon at 38 decibels
Triathlon, the battery-powered retrofit drive, is held at 38 dBA at three feet per Submittal 085312k. In a bedroom, the homeowner hears the air conditioning before they hear the Triathlon drive.
Soft start, soft stop on every drive
Sivoia QS and Triathlon both accelerate gradually at the start of motion and decelerate gradually at the end. There is no mechanical click at the start and no thud at the bottom of travel. The shade moves the way a hand would move it.
Intelligent Hembar Alignment is the patented two-part Lutron control system, included on every Sivoia QS shade, that monitors motor speed 500 times per second and applies roll-up diameter compensation as the fabric wraps the tube, holding bottom-bar alignment within 3 millimetres (1/8 inch) at all times across adjacent Sivoia QS shades, even at non-preset stops, per Lutron IHA technical white paper 367-2063 (2025).
Walls of windows in luxury hospitality corridors, double-volume residential glazing, and monumental atrium openings, where the line at the bottom of the shades must read as one continuous treatment without the eye catching a step.
Five-hundred-Hertz motor speed monitoring
Closed-loop electronic speed control checks motor speed 500 times per second and corrects against load, fabric wear, and tube diameter. The hembar linear speed stays constant from full open to full close, regardless of where the fabric sits on the roll.
Roll-up diameter compensation
As the fabric wraps the tube, the roll diameter grows. Without compensation, the hembar would accelerate. The Lutron drive electronics vary RPM continuously to hold linear speed constant. The shade descends at the same pace the eye expects.
Three deployment levels
Standard IHA ships factory pre-calibrated on every Sivoia QS shade. Customised IHA accounts for lot-to-lot fabric variation and shim tape applied during commissioning. Advanced IHA integrates with Quantum for sloped roofs, uneven shade lengths, and choreographed shade movement across an entire facade.
Position retention through power loss
Programmed limits and stored presets are retained for the product's lifetime through power loss. The shade returns to the same hembar position after the power cuts back in. No re-programming.
IHA is Sivoia QS only
IHA is a Sivoia QS feature and is not available on Triathlon, Serena, or other Lutron Roller lines. Triathlon holds stops within 3 millimetres of programmed limits but does not run the closed-loop speed control across adjacent shades.
Lutron Roller Shades integrate natively with Lutron HomeWorks QS, HomeWorks QSX, RadioRA 2, RA2 Select, RadioRA 3, Quantum, GRAFIK Eye QS, myRoom XC, Athena Shade Automation Software, and Caseta PRO for Sivoia QS; with Caseta Smart Bridge Pro, RA2 Select, RadioRA 2, RadioRA 3, HomeWorks QS, and HomeWorks QSX for Triathlon; with Caseta Smart Bridge or Smart Bridge Pro for Serena; and reach Apple HomeKit, Amazon Alexa, and Google Home through Lutron bridges, using Lutron QS Wired plus Lutron QS Wireless on ClearConnect Type A RF at 30 ft (9 m) range, per the Lutron product configurator (accessed 2026-05-21).
Whole-home Lutron projects where roller shading must sit on the same control bus as the lighting, the drapery, and the climate, with voice access through the household's existing ecosystem.
Sivoia QS, native to HomeWorks
Sivoia QS connects natively to HomeWorks QS, HomeWorks QSX, RadioRA 2, RA2 Select, RadioRA 3, Quantum, GRAFIK Eye QS, myRoom XC, Athena Shade Automation Software, and Caseta PRO. Standalone operation is also supported. No bridge. No dry-contact closure. No extra controller. The shade wakes up on the same processor that already runs the lights. Athena is Lutron's commercial-grade automation platform used on BlackRock-class installations.
Triathlon, full Lutron ecosystem reach
Triathlon's ClearConnect RF wireless reaches Caseta Smart Bridge Pro, RA2 Select, RadioRA 2, RadioRA 3, HomeWorks QS, HomeWorks QSX, and GRAFIK Eye QS. The widest control compatibility in the Lutron Roller family.
Serena, the Caseta-native line
Serena connects through Caseta Smart Bridge or Smart Bridge Pro. The line specified when the household lives on HomeKit scenes and Caseta lighting is already in the home.
Voice via HomeKit, Alexa, Google Home
Voice control arrives through Lutron bridges into Apple HomeKit, Amazon Alexa, and Google Home. The voice integration is Lutron's, not a third-party plugin. Sonos integration is also supported.
Natural Light Optimization and Hyperion solar adaptive shading
Sivoia QS integrates directly with Lutron Hyperion Solar Adaptive shading on HomeWorks QSX and RadioRA 3, tracking the sun through four modes (Direct Sun, Reflected Sun, Bright Sky, Overcast). Natural Light Optimization is Lutron's consumer-facing name for the same sun-tracking shade-position feature on HomeWorks, RadioRA 3, and Athena Shade Automation Software. Documented up to 30 percent cooling savings in case-study commercial installations.
AV and BMS integration
For projects on Crestron, Control4, Savant, URC, ELAN, [Josh.ai](http://Josh.ai), or a building-management system, Sivoia QS reaches those platforms via the Lutron LEAP API or contact closure.
Sivoia QS is hardwired on Class 2, 35 V Lutron QS bus, powered by the Lutron QSPS power supply family with single, junction-box, and 10-output panel options. Triathlon is battery-powered with 3 to 5 year D-cell alkaline life through Active Energy Optimization, or 12V wired. Serena is battery-powered through Caseta. The Lutron Eight-Year Limited Warranty covers materials and the electronic drive unit (100 percent parts coverage for the first five years, pro-rated through year eight, no registration required), with a New Way Five-Year fabrication wrap on top, per the Lutron Window Systems Warranty document (2025).
Projects specifying roller shading during M&E where ceiling pockets, soffit details, and low-voltage runs can be detailed before the joinery is closed, and retrofit homes where battery-powered Triathlon or Serena preserves the existing structure.
Wiring class and voltage
Sivoia QS uses Class 2, 35 V low-voltage wiring on a 4-conductor cable (COM, V+, MUX, MUX BAR) per UL 1310 and the Lutron QSPS data sheet. Maximum daisy-chain length is 1000 ft. Wire runs over 50 ft require Link Terminators.
Power supply options
Power is delivered by the Lutron QSPS family. QSPS-P1, QSPS-P2, and QSPS-P3 plug-in supplies for one to three drives. QSPS-J junction-box supplies for in-wall hardwire installations. QSPS-10PNL, QSPSY-10PNL, QSPS-10PNL-NPM, and QSPS-30PNL-NPM panels for multi-drive installations powering up to ten Sivoia QS shades plus keypads per panel.
Battery architecture for Triathlon and Serena
Triathlon ships with 6 to 16 D-cell alkaline batteries depending on shade width and configuration, delivering 3 to 5 years of life through Lutron's Active Energy Optimization. The Battery Boost option on shades wider than 37.5 in extends life by up to 80 percent. Tip-forward headrail allows battery change without removing the shade.
Critical compatibility note
Triathlon 12V cannot share the Sivoia QS 35 V power panel. Voltage mismatch will damage components. Power architecture is confirmed during specification at the M&E stage.
Mounting options
Inside mount (jamb), outside mount on trim, outside mount above trim, ceiling mount, wall mount, jamb mount, pocket mount, fascia mount, and dual mount are all supported. All shades require blocking or structural material with fasteners rated for 75 lbs (34 kg) per fastener.
Seven SKU configurations from the Lutron product configurator
Sivoia QS ships in seven pocket and fascia configurations selected at specification, per Lutron's product configurator (accessed 2026-05-21): metal fascia 3.5 in by 3.5 in (R64, max width 144 in, max area 64 sq ft); metal fascia 4 in by 4 in (R64, max width 144 in, max area 144 sq ft); recessed single 4 in by 4 in (R64, max width 144 in, max area 144 sq ft); recessed single 4.75 in by 5 in (R100, max width 176 in, max area 100 sq ft); recessed single 7 in by 7 in (R225, max width 190 in, max area 225 sq ft); recessed dual 5.5 in by 7.5 in (R64, two independent shades in one opening); recessed dual 7 in by 11 in (R100, two independent shades in one opening, approximately 100 sq ft per motor). Metal fascia finishes ship in white, black, bronze, silver, and custom color.
Lutron Eight-Year Limited Warranty
Lutron covers materials and the electronic drive unit for eight years from shipment: 100 percent parts coverage for the first five years, pro-rated through year eight. No registration required.
New Way Five-Year fabrication wrap
New Way adds a five-year fabrication wrap on top of the Lutron warranty, covering the fabric, the chassis, and the drive housing. The wrap is the local-service layer that handles fabrication-specific issues without escalation to Lutron directly.
Safety and regulatory
ANSI/WCMA A100.1 compliance for window-covering safety. Qualifies as WCMA Best for Kids because motorisation removes hanging cords. UL 1310 Class 2 power supplies. UL listed and cUL listed (E135084). FCC Part 15, IC, CFT, CE, UKCA, NCC, TRA certifications across markets.
Authorized Fabricator for Renson, Aqara, Lutron
New Way is the licensed Renson Fixscreen fabricator and installer for Malaysia and Singapore, a Lutron-approved fabricator since 2022, and an Aqara partner. The Standard Cable-Guided line on this page is the entry rung of the New Way outdoor ladder. For hospitality references and hurricane wind class, route to Renson Fixscreen.
Trust, Reach & Recognition
New Way Group, founded 1993; full pivot to intelligent shading in 2018; Singapore entity since 2025.
Licensed Renson Fixscreen fabricator and installer for Malaysia and Singapore. Lutron-approved fabricator since 2022.
316 marine-grade stainless hardware throughout, 10+ year operating life, 3-year system and 5-year motor warranty.
Products Reviews
Frequently Asked Questions
Pre-Sales
Sivoia QS, Triathlon, or Serena: which Lutron Roller line is right for our home?
Lutron Roller Shades run as three distinct lines, each keyed to a home stage. Sivoia QS is the hardwired, specification-grade line for new-build where the ceilings are still open, with IHA bottom-bar alignment within 3 millimetres. Triathlon is the battery-powered line for retrofit homes (3 to 5 year D-cell life, widths to 108 inches). Serena is the Caseta-native line for Apple-led homes already running Caseta lighting.
How do Lutron Roller Shades compare to Hunter Douglas Architectural or Somfy motorised shades?
Lutron Sivoia QS Roller Shades differ from Hunter Douglas Architectural and Somfy commercial drives on three specs that matter at the luxury tier as of 2026. Alignment: Sivoia QS holds bottom bars within 3 millimetres at all times via IHA running at 500 Hz. Acoustic: Sivoia QS R64 holds below 35 dBA at three feet per Lutron Submittal 085705c. Control: Sivoia QS sits natively on the Lutron QS bus alongside HomeWorks lighting.
Is the cost difference between Lutron and other premium motorised lines worth it on a luxury project?
The case for Lutron Roller Shades at the luxury tier is a system case. The Lutron 8-Year Limited Warranty covers parts at 100 percent for the first five years and pro-rates through year eight, and the New Way 5-Year fabrication wrap sits on top. IHA holds bottom bars within 3 millimetres across a wall of glass, the kind of finish a guest notices in a Four Seasons or Aman suite. The same Lutron processor runs the lighting scenes, so the shades become a layer of the home rather than a separately bridged device.
Performance
How loud is a Lutron Roller Shade motor really, and can we hear it before specifying?
Lutron Sivoia QS R64 will not exceed 35 dBA measured at three feet per Lutron Specification Submittal 085705c (2023). R100 holds below 38 dBA per Submittal 086106b. R225 also holds below 38 dBA. R300 in coupled configurations operates at 38 to 50 dBA. Triathlon, the retrofit-tier drive, is held at 38 dBA at three feet per Submittal 085312k. The honest answer is best given in person. The New Way showroom in Malaysia carries a working Sivoia QS chassis on display.
What happens to Lutron Roller Shades during a power outage?
Lutron Roller Shades retain their programmed limits and stored presets for the product’s lifetime through power loss, so no re-programming is required after an outage. The hardwired Sivoia QS drive itself does not move while power is cut because the line is hardwired with no battery backup on the drive unit. When power returns, the shades resume normal operation and the previously named scenes recall to the same positions. Triathlon and Serena, the battery-powered lines, continue to operate during a power outage.
Can Lutron Roller Shades deliver hospitality-grade blackout in a bedroom?
Lutron Sivoia QS Roller Shades deliver true blackout in a bedroom when specified as a system. The blackout fabric is combined with 2.5 inch aluminium side channels carrying internal wool pile, a top back cover, and sill angles. Light seals at the head, the sides, and the sill close to the level a Four Seasons or Aman guestroom achieves. Side channels are a Sivoia QS feature only.
Smart Integration
We have a Lutron HomeWorks or RadioRA processor already specified. Does that change anything?
Lutron Sivoia QS Roller Shades connect natively to HomeWorks QS, HomeWorks QSX, RadioRA 2, RA2 Select, RadioRA 3, Quantum, and GRAFIK Eye QS, so a processor already in the project carries the roller shades as another zone on the same bus without a third-party bridge. The Pico remote, the seeTouch QS keypad, the Sunnata or Palladiom keypad, and the Lutron app reach the shades the same way they reach the lighting. Hyperion Solar Adaptive shading is available on HomeWorks QSX and RadioRA 3.
Installation
We did not pre-wire for shading during M&E. Can we still specify Lutron Roller Shades?
Lutron Roller Shades have a retrofit answer that preserves most of the outcome. Sivoia QS is hardwired on Class 2, 35 V Lutron QS bus, so retrofitting into a finished ceiling typically requires opening the soffit or chasing the wall for new low-voltage cable. For homes past M&E without practical wiring access, the better Lutron answer is Triathlon (battery-powered or 12V wired, ClearConnect RF wireless, widths to 108 inches, 38 dBA at three feet, 3 to 5 year D-cell battery life through Active Energy Optimization).
Buying Journey
Who is the right first conversation: the architect, the interior designer, the AV integrator, or New Way?
For Lutron Roller Shades, the first conversation that produces the best outcome includes everyone before the joinery is sealed. The New Way atelier sits with the architect, the interior designer, and the AV integrator together to walk through chassis sizing, pocket depth, fabric selection, fascia profile, keypad locations, and scene logic. Per CSI 12 22 16 workflow, we mock up the fabric, the openness factor, and the integration scene before any shade is fabricated.
Ready to grow your business with premium
roller blinds trusted by Lutron, Aqara & Renson?
Join our dealer network and offer world-class shading solutions backed by authorized fabricators and global support
Get Pricing & Catalog
Sales will call in 1 business day
and arrange physical catalog.
Chat via WhatsApp
Chat with our dealer team
for pricing and availability.
Mon–Sat, 8am – 5pm.
Contact Us Directly
We reply within 24 hours
Support Hours: Mon–Fri 9:00–18:00, Sat 10:00–14:00 (MYT)
