Hospital Cubicle Curtain Tracks

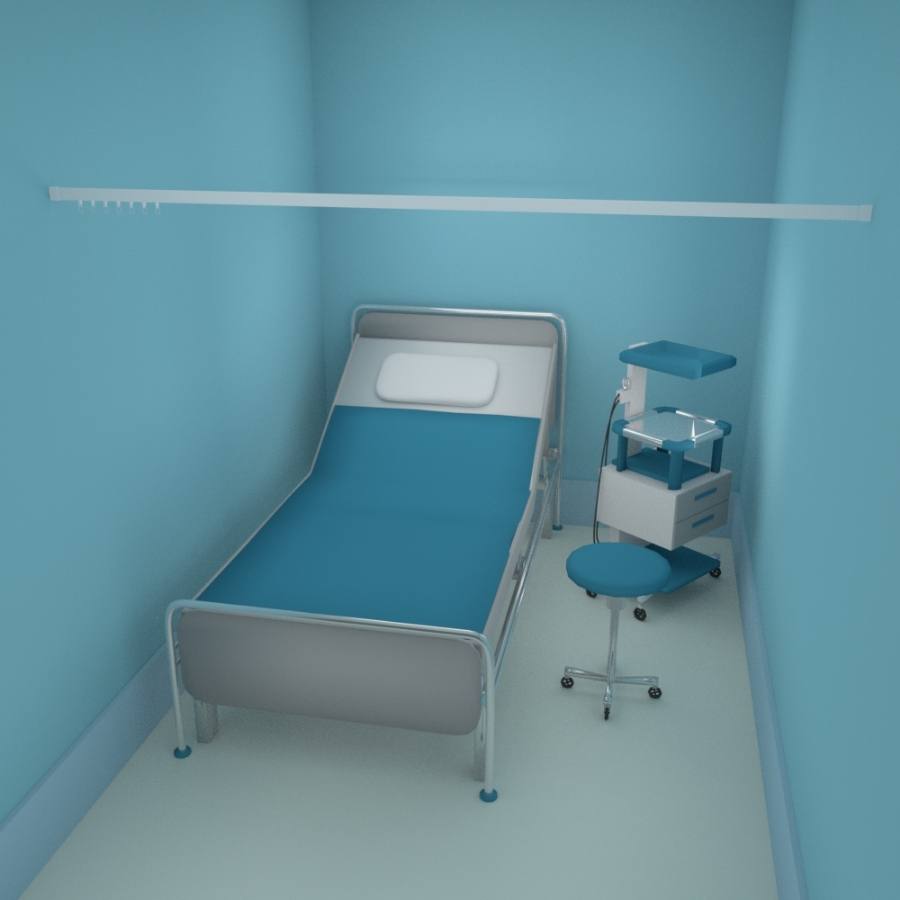

Straight hospital curtain track across the room with 2 end fix bracket attached to the wall guarantee perfect stability.

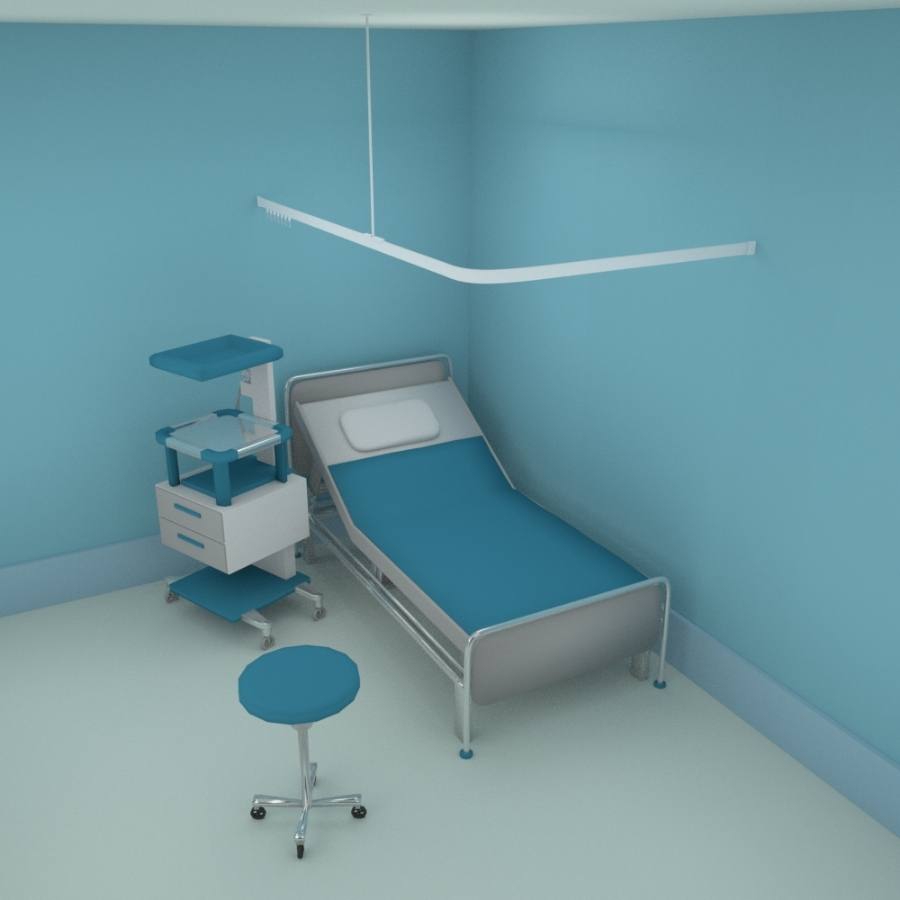

Hospital curtain track “L Shape” hanging with one suspended rod and 2 end fix bracket attached to the wall

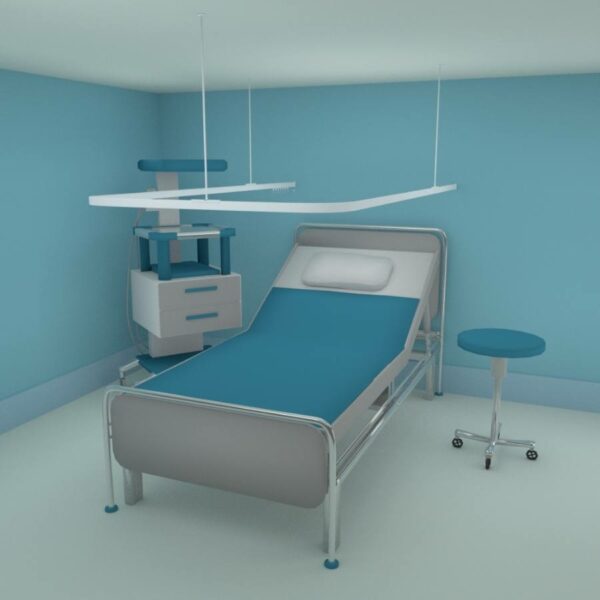

Hospital curtain track “U Shape” hanging with three suspended rod and 2 end fix bracket attached to the wall

Hospital cubicle tracks can look like a small scope until approvals drag, defects appear, and your margin gets eaten by rework.

When the spec is unclear, you get pulled into RFIs, substitutions, and client escalation.

New Way Hospital Cubicle Curtain Tracks give you tender ready clarity with measurable performance. You can specify 6063 T5 aluminum with a 15–20 kg per meter distributed load rating for predictable site outcomes.

You can also control sag risk with 1.0–1.2 m recommended support spacing and 1.5–2.0 m maximum unsupported spans. That helps you hand over with fewer defects.

Open wards and high traffic treatment areas make it hard to deliver privacy without building walls.

If patients feel exposed during examinations or personal care, complaints rise, trust drops, and the facility faces reputational and legal risk.

New Way Hospital Cubicle Curtain Tracks let you create functional cubicle spaces fast using straight, 90 degree corner, curved, and U shape layouts.

For tight planning and retrofit corners, you can specify curved sections with a 300 mm minimum bend radius. That helps you deliver reliable separation without changing the building.

Infection control breaks down when separation is weak or curtain handling is difficult.

When teams cannot change curtains regularly or isolate zones effectively, cross contamination risk rises. The facility pays the price through HAIs, higher cost, and negative scrutiny.

New Way pairs a medical grade track system with FR antimicrobial hospital curtains that deliver 99.9% bacterial reduction in 24 hours, tested to ISO 20743 or AATCC 100.

Curtains support 75–85°C thermal disinfection washing and maintain antimicrobial performance for 50+ wash cycles. That makes routine curtain changes easier to plan and easier to defend in tender.

Hospitals rarely have clean room shapes and fixed requirements. Layouts shift due to surges, outbreaks, or new equipment.

If the system is rigid, capacity drops, installs get delayed, and the contractor gets blamed for a space that cannot adapt.

New Way supports straight, corner, curved, and multi lane 2 to 4 channel track options. You can match the system to each department without redesigning the entire floor.

For ceiling coordination, you can specify adjustable ceiling brackets with 50–150 mm drop. That helps you avoid clashes and keep the program moving.

Curtains get pulled hard in hospitals, tracks take constant abuse, and low quality systems start to jam, sag, or get noisy.

That creates disturbance in recovery areas, drives maintenance cost, and can become a safety and liability issue if failures cause injuries.

New Way carriers use POM or Nylon 6 with enclosed ball bearing rollers, rated 2–3 kg per carrier. This supports smoother movement in high cycle areas.

For better curtain drape and fewer pinch points, you can specify 75–100 mm carrier spacing. Combined with 1.2–1.5 mm wall thickness track profiles, you reduce breakdowns and site returns.

Fire safety, hygiene expectations, and operational safety checks can stall procurement and trigger late changes that blow your schedule.

When compliance feels uncertain, clients delay approvals or force replacements at the worst time, and the contractor absorbs the impact.

New Way supports compliance documentation with BS 6095 track alignment and ISO 9001 certified manufacturing.

Curtains pass NFPA 701, BS 5867 Part 2 Type B, BS 5867 Part 2 Type C, DIN 4102 B1, and M1 classification, with certificates available. That reduces approval friction and helps you avoid forced rework.
